No.99/99X Corrugated Board Bit

For the Hook holes in the corrugated panel

Features

  • Easy positioning with the sharp and non-slippery shape of the drill tip.
  • Both for manual operated by hand, also for 6.35mm hex shank for the Quick change impact driver available.
  • Can make clean cut hole without blowout.

Specifications

Usage Polycarbonate
PVC
Corrugated Sheet with glass net
Recommended tool(s) No.99X:
Quick Change Impact Driver
Electric Power Drill
RPm Range No.99X:Less than 3,000 rpm
Material(s) No.99:High Carbon Steel・Resin
No.99X:High Carbon Steel
Markings

Sizes

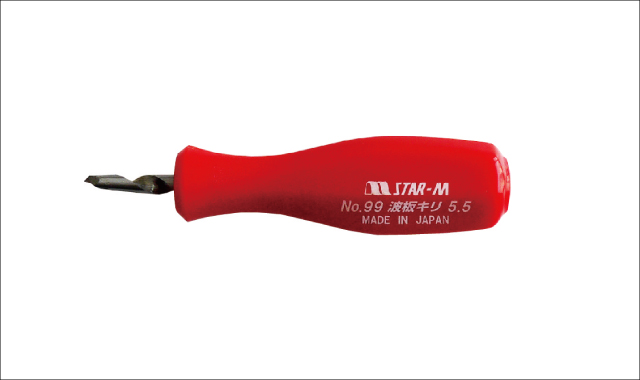

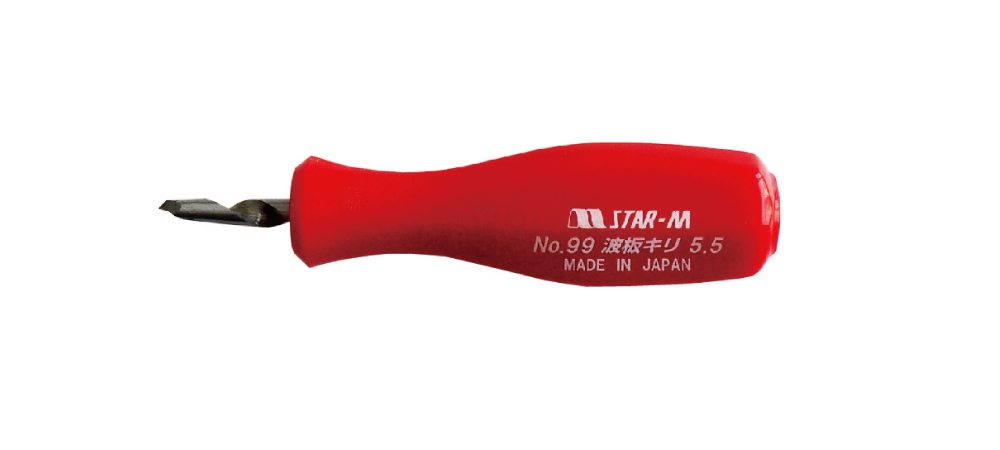

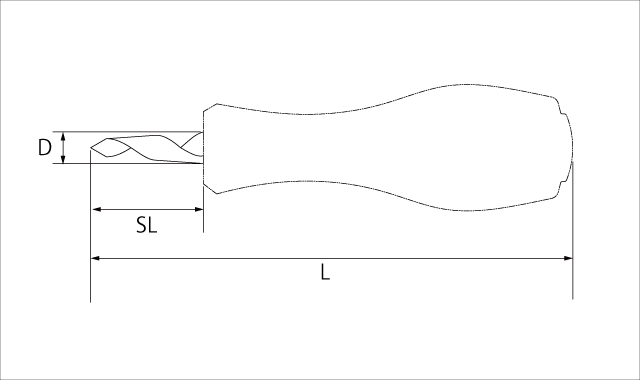

No.99 Corrugated Board Bit

  • corrugated board bit size

  • Size:D
  • Overall Length:L
  • Spiral Length:SL
  •  Unit:mm

Product No. Size Overall Length Spiral Length Qty (Inner Drill)
99-055 5.5 120 25 6
99-065 6.5

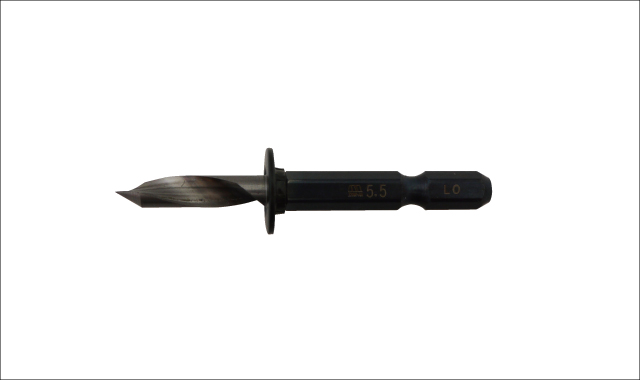

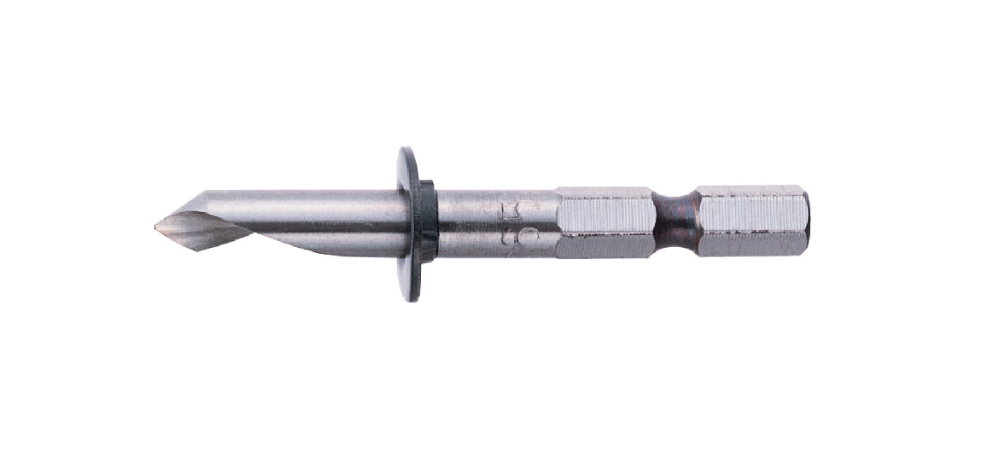

No.99X Corrugated Board Bit with Hex Shank

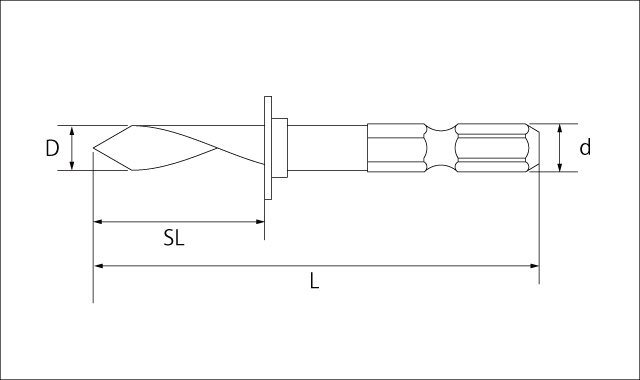

  • corruated board bit with hex shank size

  • Size:D
  • Overall Length:L
  • Spiral Length:SL
  • Shank Shape:d
  •  Unit :mm

Product No. Size Overall Length Spiral Length Shank Shape Qty (Inner Box)
99X-055 5.5 65 25 6.35 10
99X-065 6.5

Q&A

  1. 1. Can we use it for Straight type corrugated board, or galvanized steel board?
    This can be used for those materials, however, we do not recommend as it wears severely.

Help

How to use

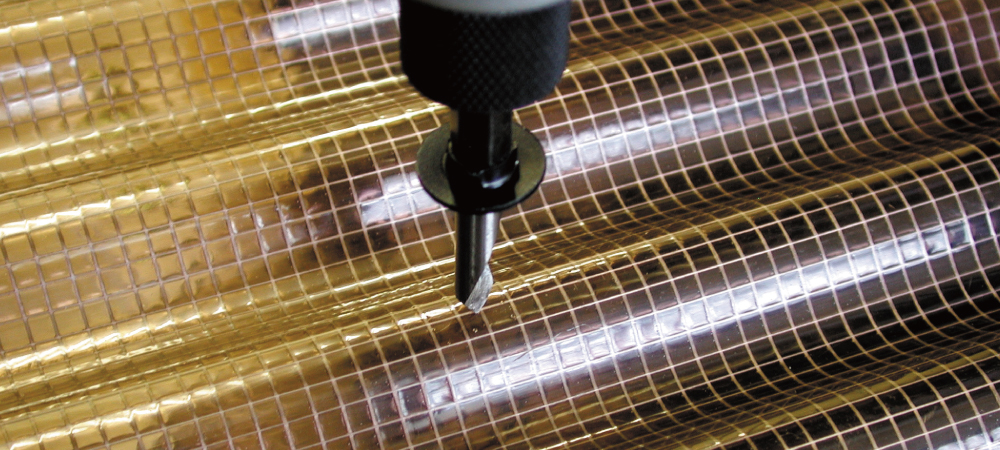

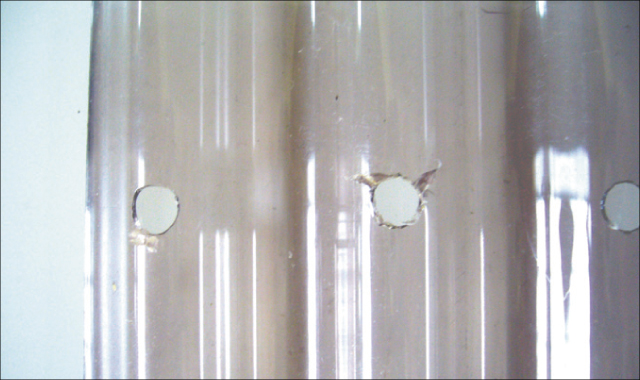

◎Hook bolt ◎Usage for steel drill ◎Usage for Corrugated Board Bit

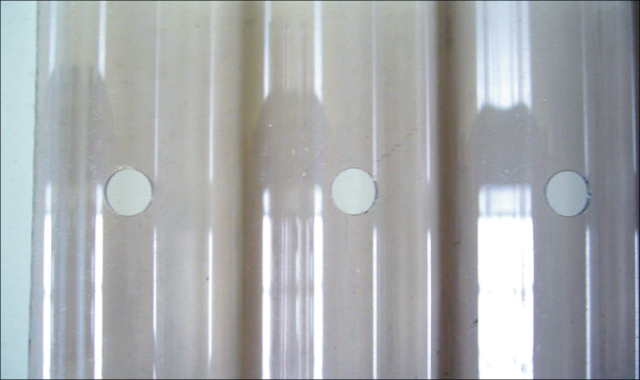

burr non burr
◎Quick on target ◎ Terrace ◎ Garage
quick on target terrace garage
