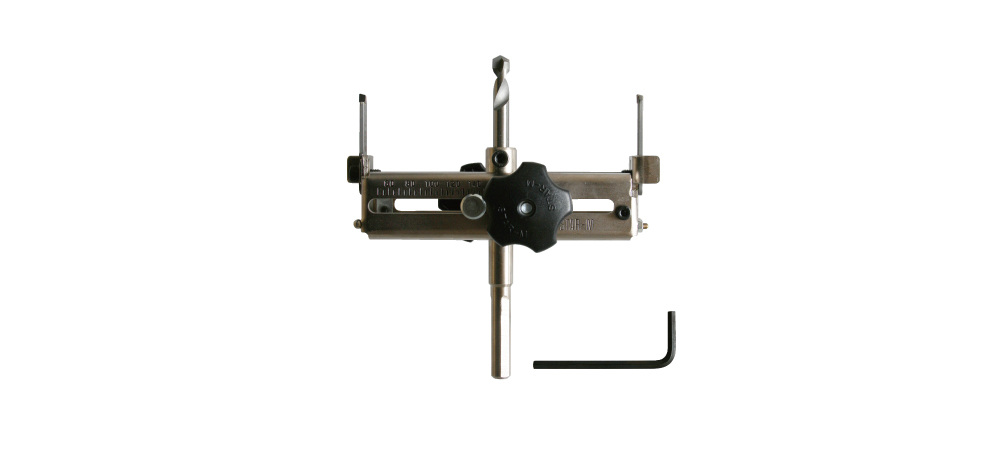

No.5010D Diamond Quick Adjustable Circle Cutter

No need tools for adjusting the cutting size
For gypsum and hard cement board, pipes, and duct

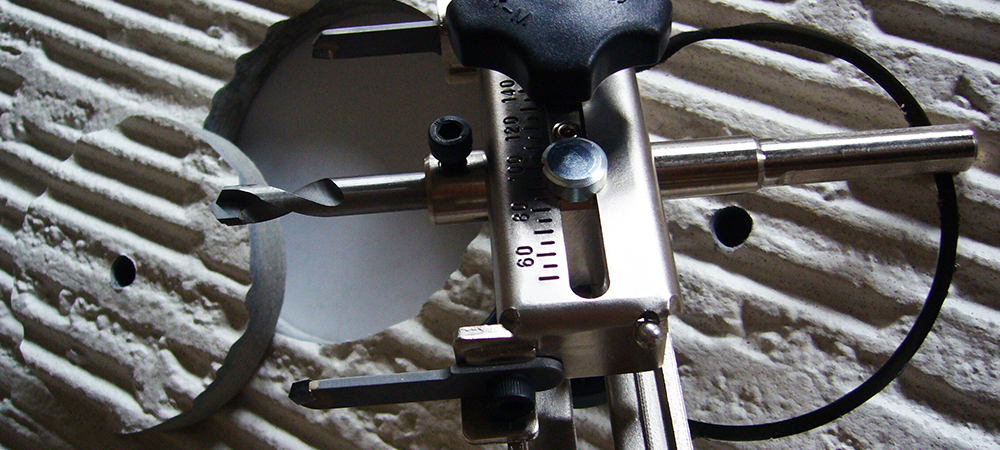

Features

  • Range in size 60mm to 200mm.
  • Smooth and speed work by twin-blades.
  • Easy size adjustment without tools.
  • Drilling into gypsum and hard cement board will be available.

Specification

Usage Gypsum Hard cement board
Recommended tool(s) Electric Power Drill
RPm Range Less than 1,500 rpm
Material(s) Body:High Carbon Steel
Center Drill:High Carbon Steel with T.C.T.
Spare Blade:Diamond
Capacity Hole sizes 60mm - 200mm.
Applicable depth:Single face 25mm / Both face 50mm
Markings
Caution
  • For some of the ceramic type siding board may not be applied.

Sizes

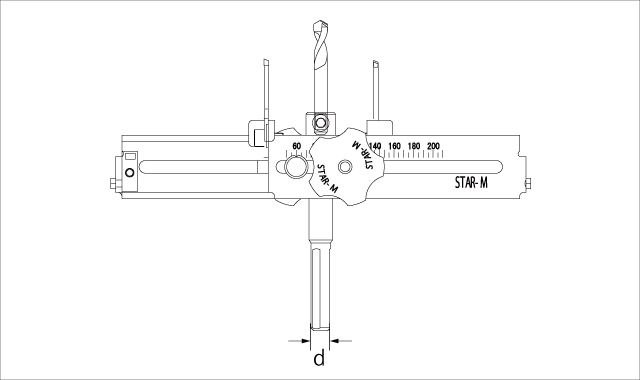

  • ダイヤモンドワンタッチ自在錐 寸法図

  • Unit:mm

Product No. Name Size Shank Shape Qty (Inner Box)
5010D Set 60×200 10 2

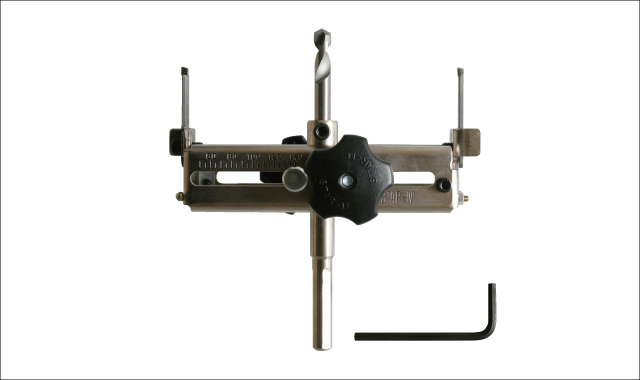

Assembly

※Click to open expanded view. Press [ESC] to close or click [×] to close.

Replaceable Blade

  • ダイヤモンドワンタッチ自在錐替刃 寸法図

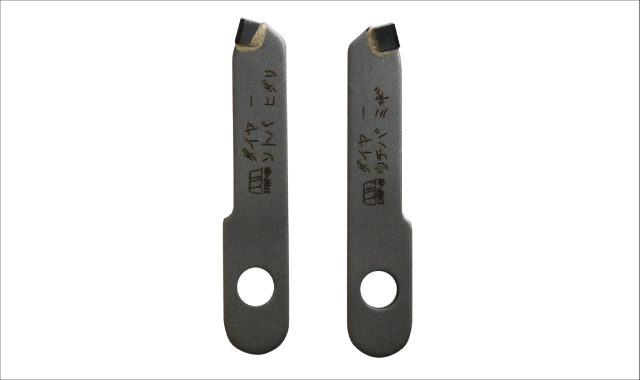

Product No. Description Qty (Inner Box)
36D-K 2pcs Set 6

※36D-k:Shared use of replaceable blade for No.36D.

Center Drill

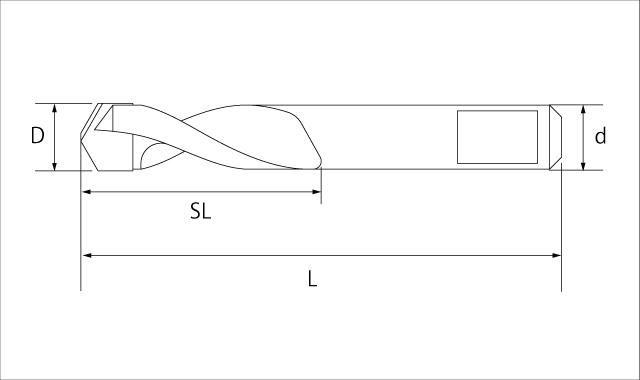

  • ダイヤモンドワンタッチ自在錐センタードリル 寸法図

  • Size:D
  • Overall Length:L
  • Spiral Length:SL
  • Shank Shape:d
  • Unit:mm

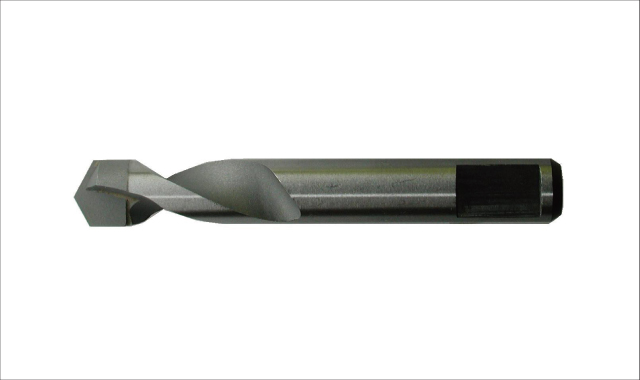

Product No. Size Overall Length Spiral Length Shank Shape Qty (Inner Box)
36D-CD 8 60 30 8 1

※36D-CD:Shared use of replaceable center drill for No.36D.

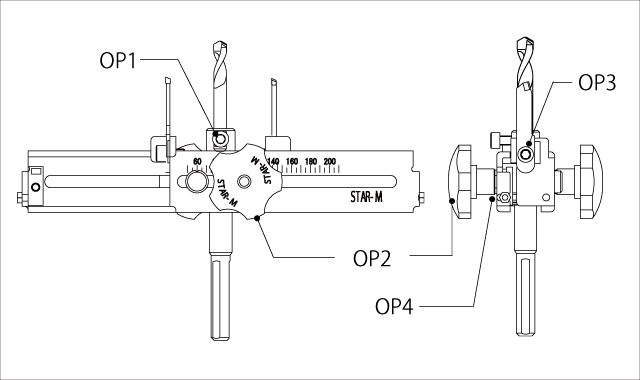

Other Assembly

  • ダイヤモンドワンタッチ自在錐 その他パーツ

  • Unit:mm

Product No. Name Size Qty (Inner Box)
5010-OP1 Center Drill Set Screw 5×10 1

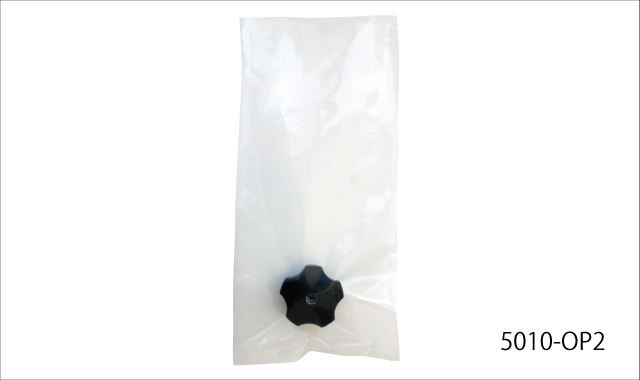

5010-OP2 Handle without Washer(1pc) - 1

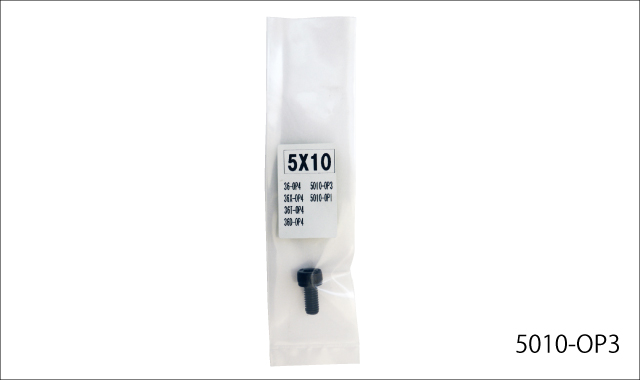

5010-OP3 Spare Blade set screw(1pc) 5×10 1

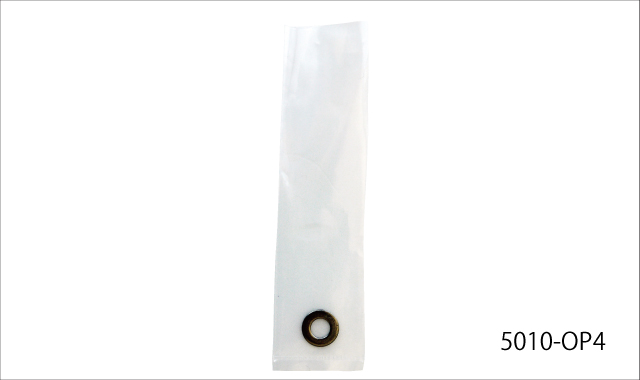

5010-OP4 Washer for handle(1pc) - 1

※Above illustration is of No.5010, other assembly are commonly used.

Bits of knowledge

  • 3 kinds of Quick Adjustable Circle Cutter series are commonly used. By changing the center drill, replaceable blade, it can be used for the materials what you choose.
