No.5007 H.S.S. Countersink

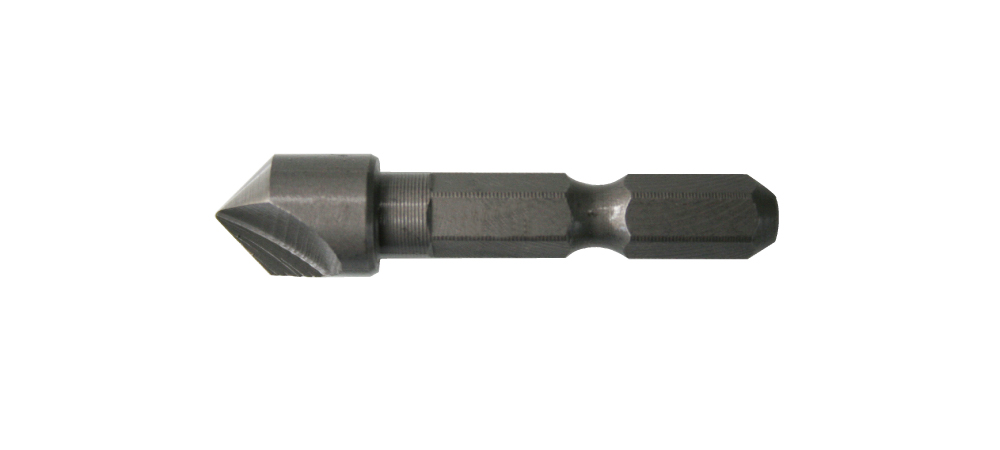

H.S.S. Countersink

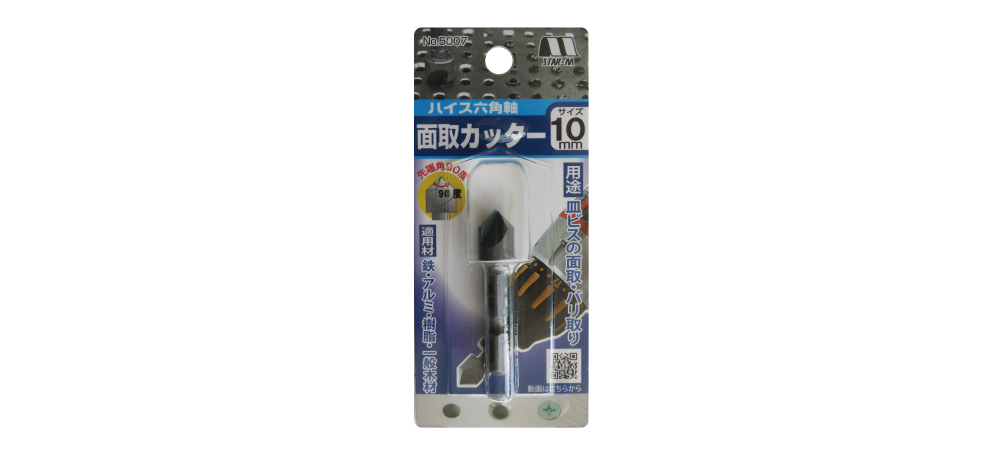

Package Presentation

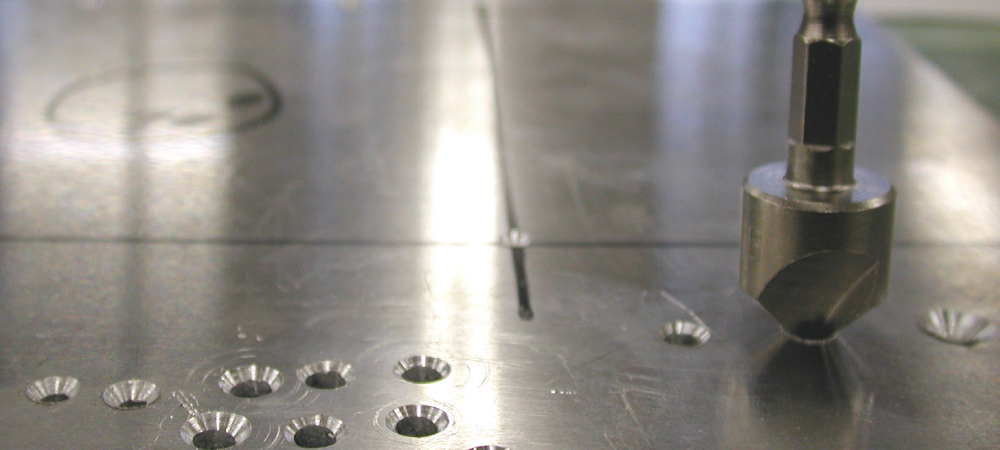

Example of use
H.S.S. Countersink
Package Presentation
Example of use
USE

Completely countersink working for wood, steel aluminum

FEATURES

Specifications

Usage Wood
Steel
Aluminum
Resin
Material(s) High Speed Steel
Recommended tool(s) Electric Power Drill
Cordless Drill (over 14.4v)
Quick Change Impact Driver (over 14.4v)
RPm Range Less than 3,000 rpm
Tip angle 90 degrees
Shank Shape Hexagon:Hexagon
CautionCaution When using it for aluminum materials, it is recommended to work while applying oils as there is a risk of welding.

Sizes

H.S.S. Countersink
size

Size:D Overall Length:L Shaft Length:L2 Shank Shape:d Unit:mm

Product No. Size Overall Lengh Shaft Length Shank Shape
5007-060 6 42 32
6.35Hexagon
5007-080 8 44 32
6.35Hexagon
5007-100 10 46 32
6.35Hexagon
5007-120 12 48 32
6.35Hexagon
5007-160 16 52 32
6.35Hexagon

QTY(Inner Box):10pcs

Q&A

Can it be used for stainless steel?
It can not be used.

Help

How to use

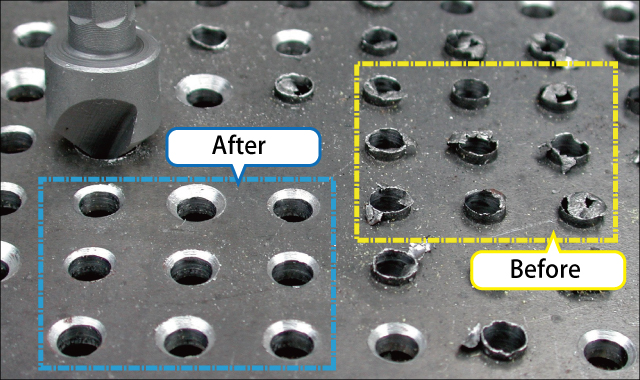

Chamfering

Ideal for chamfering

Burrs will appear when drilling with an ironworking drill. Burrs can be removed cleanly using a H.S.S.Countersink.
