PRODUCT INFO

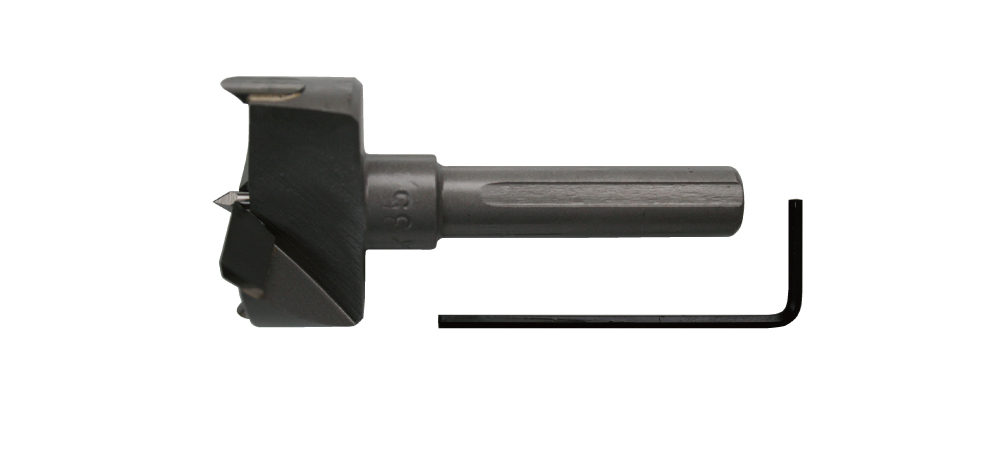

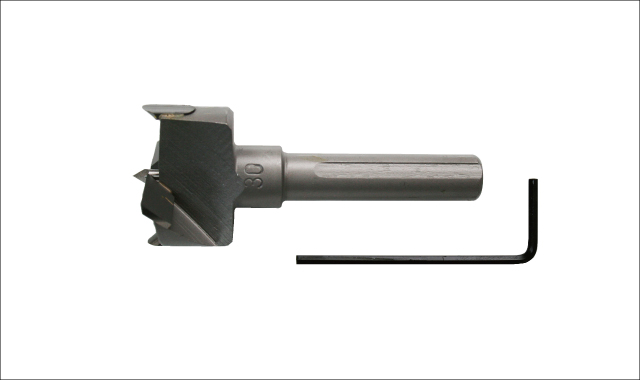

No.13D T.C.T. Adjustable Hinge Bit

Designed for installing of slide hinge or drop hinge

Features

  • The brad point type for smooth on-target stars and easy to adjust the depth.
  • Replaceable center drill can be adjustable to meet hinge work.

Specifications

Usage Wood
Hard Wood
Recommended tool(s) Electric Power Drill
Drill Press Machine
RPm Range Less than 1,500 rpm
Materials High Carbon Steel with T.C.T.
Markings

Sizes

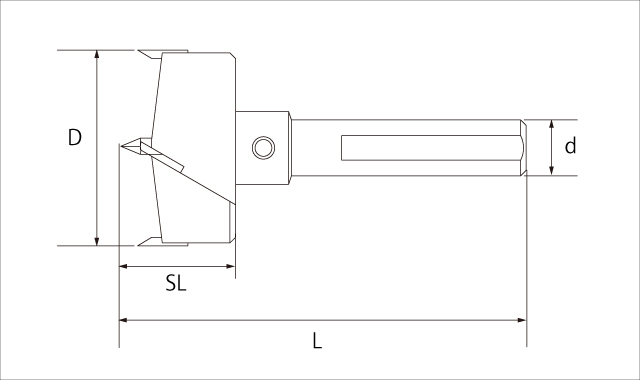

  • t.c.t. adjustable hinge bit size

  • Size:D
  • Overall Length:L
  • Spiral Length:SL
  • Shank Shape:d
  •  Unit:mm

Product No. Size Overall Length Spiral Length Shank Shape Qty (Inner Box)
13D-260 26 70 20 10 1
13D-300 30 1
13D-350 35 1
13D-400 40 1

Assembly

※Click to open expanded view. Press [ESC] to close or click [X] to close.

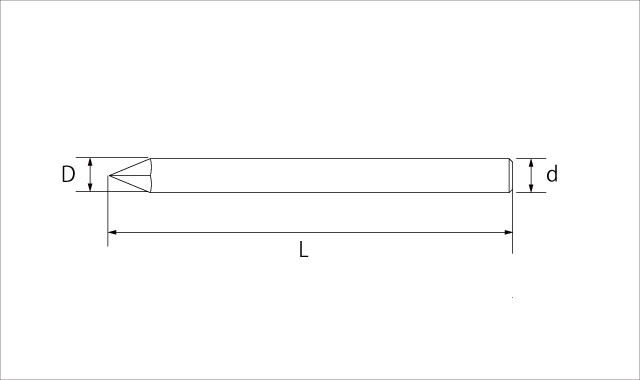

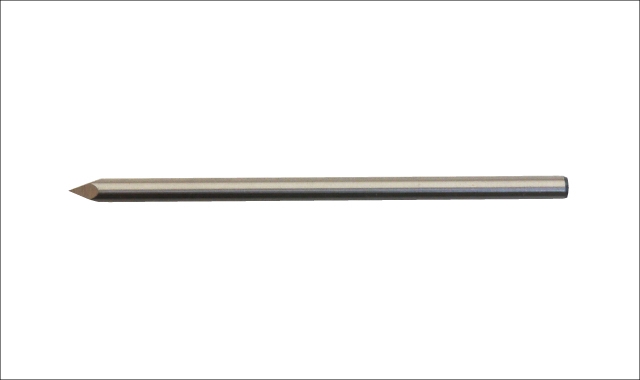

Center Drill

  • t.c.t. adjustable hinge bit center drill size

  • Size:D
  • Overall Length:L
  • Shank Shape:d
  •  Unit:mm

Product No. Size Overall Length Shank Shape Qty (Inner Box)
13D-CD 3 60 3 1

Bits of knowledge

  • No.13D T.C.T. Adjustable Hinge Bit is able to use for melamine and kitchen panels.
  • For large diameter, any length and sizes are available by order for Board Bit and T.C.T. Board Bit.

Q&A

  1. 1. What is Slide type hinge and Drop type hinge?
    Slide type hinge is often used for slide door. Drop type hinge is often used for downward opening door.

Help

How to use

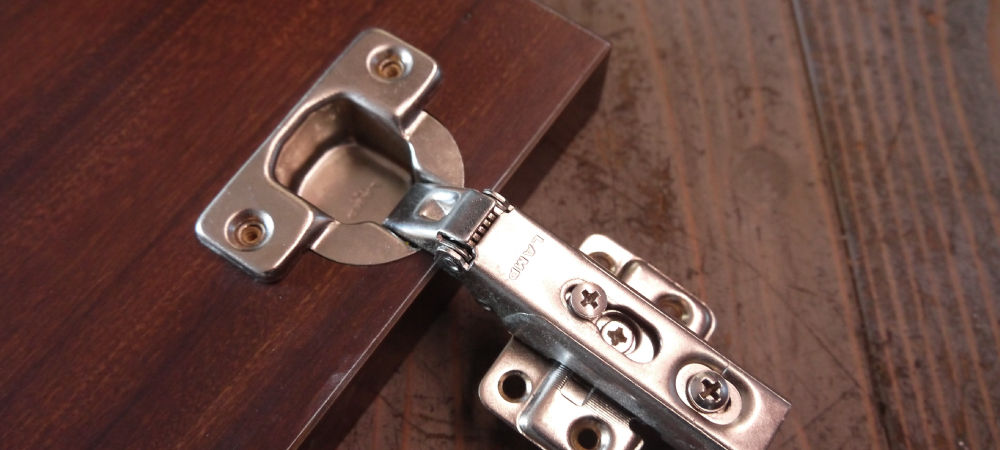

◎Installation of slide hinge
how to use 1 how to use 2

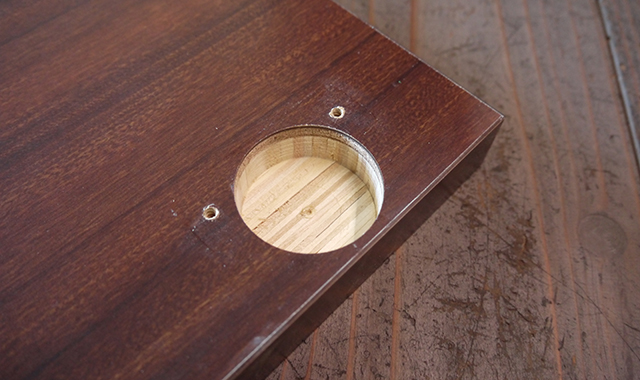

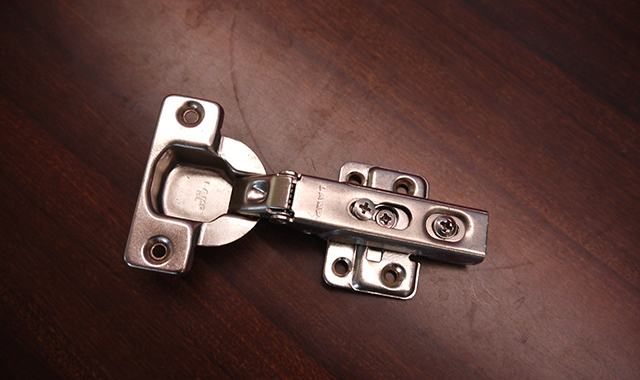

@Prepare a slide hinge. AMake a hole on the door.
how to use 3 how to use 4

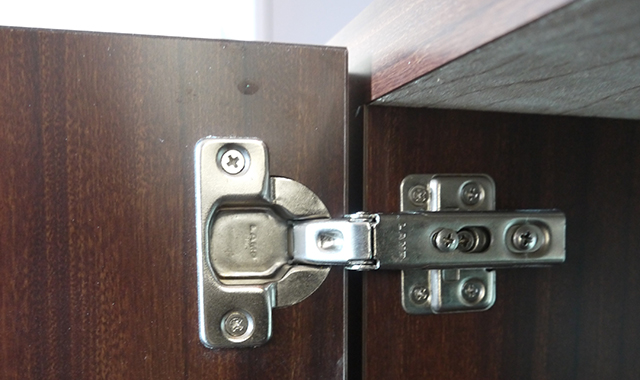

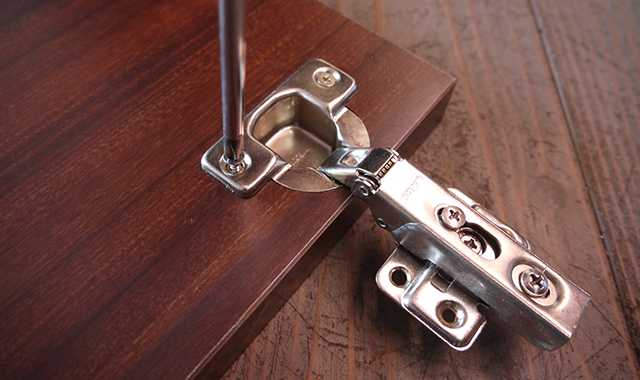

BPut the slide hinge in the hole and steady it with screws. CSteady the metal fitting with screws on the end board.

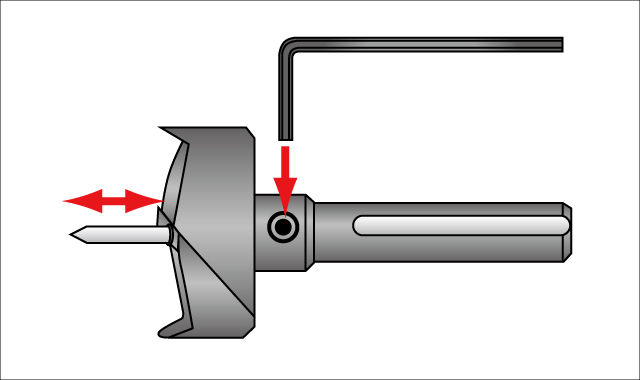

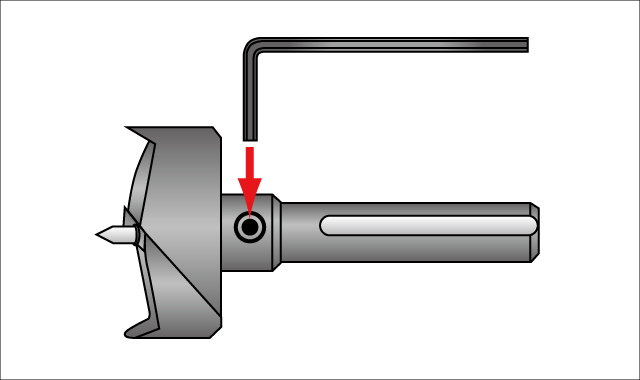

◎How to adjust the center drill
how to adjustable the center drill 1 how to adjustable the center drill  2 how to adjustable the center drill  3
@Loosen the screw. AAdjust the center drill freely. BFixed the screw.
