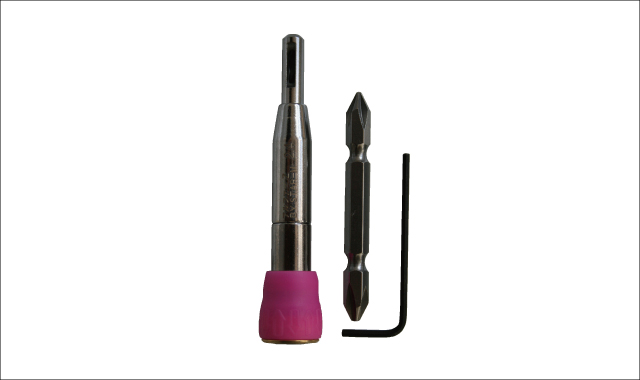

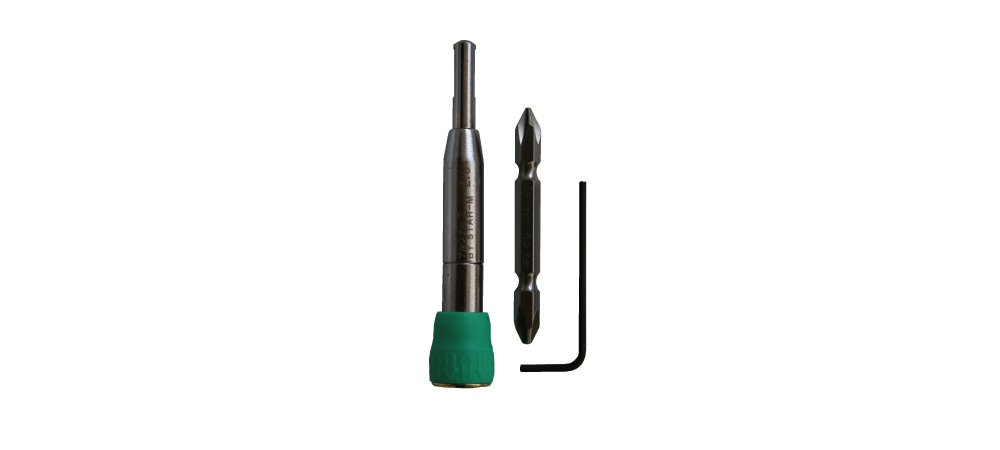

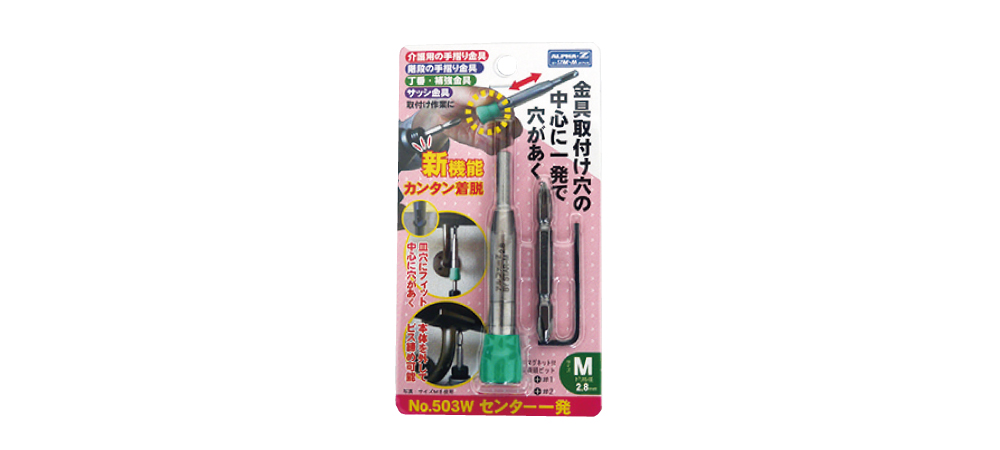

No.503W Self-Centering Hinge Drill

Score perfect hit in one-shot deal for hinge

Features

  • Quick on target and score perfect hit in one-shot deal for hinge.
  • The socket is detachable both directions up and down.
  • Attached double-end bit remains on the electric power drill, it can be used.
  • Take off the guide, it can be used for steel drill.

Specifications

Usage Wood
Iron
Light metal
Plastic
Recommended tool(s) Cordless Drill
Quick Change Impact Driver
RPm Range Less than 2,500 rpm
Material(s) Body:High Carbon Steel
Socket:Rubber
Center Drill:H.S.S.
Markings

Sizes

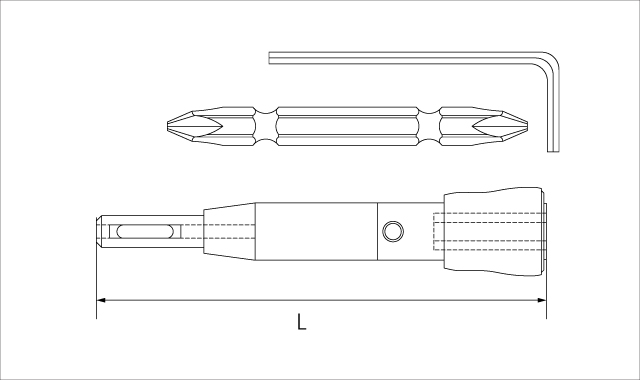

  • self-centering hinge drill size

  • Overall Length:L
  •  Unit:mm

Product No. Size Inner Drill Overall Length Qty (Inner Box)
503W-SS SS 2.0 83 6
503W-S S 2.4 88 6
503W-M M 2.8 94 6
503W-L L 3.2 100 6

Assembly

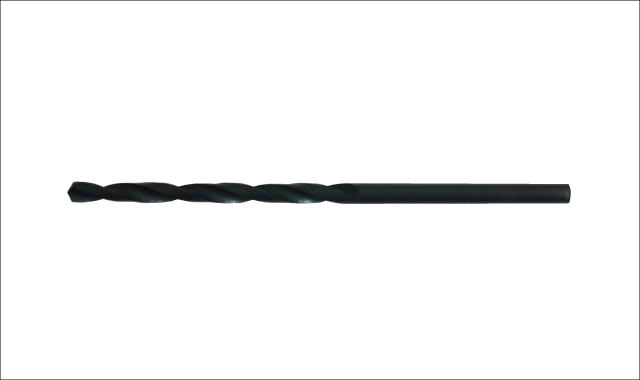

Center Drill

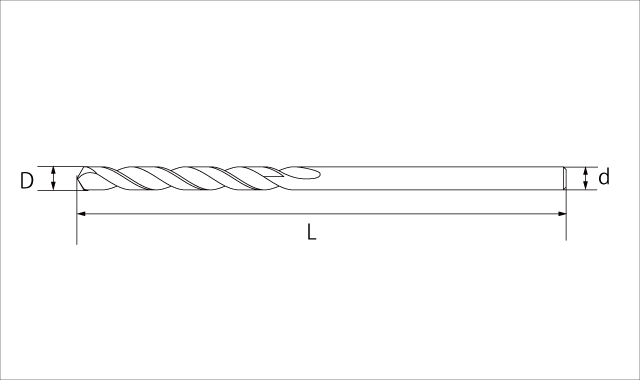

  • self-centering hinge drill center drill

  • Size:D
  • Overall Length:L
  • Shank Shape:d
  •  Unit:mm

Product No. Size Overall Length Shank Shape Qty (Inner Box)
503W-CD020 2.0 (SS) 56 2.0 6
503W-CD024 2.4 (S) 60 2.4 6
503W-CD028 2.8 (M) 68 2.8 6
503W-CD032 3.2 (L) 71 3.2 6

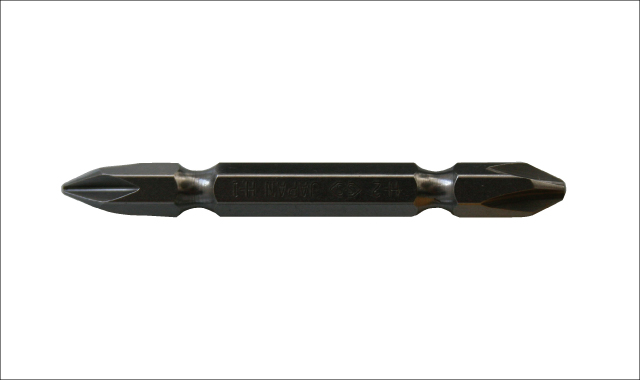

Double-end Bit

  • self-centering hinge drill double-end bit size

Product No. Size
503W-A #1&#2

Bits of knowledge

  • Avaiable any steel drill to be set. (please pay close attention of length.)

Q&A

  1. 1. How to change the inner drill?
    In the case of SS, S and M sizes, loosen the screw and detach the guide. In case of L size, turn the guide and detach it and the screw shows up. Loosen the screw to change the inner drill.

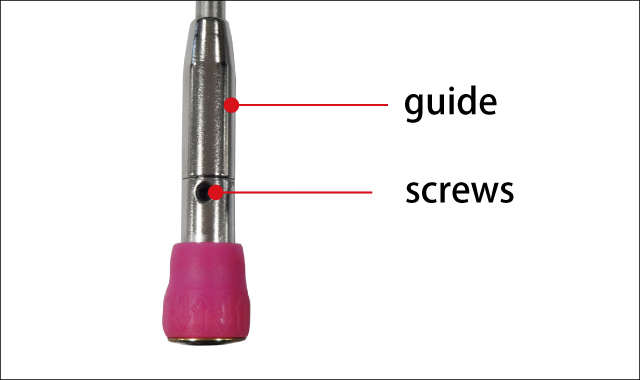

    change inner drill 【In the case of SS, S and M】
    @Loosen the screw.
    ATurn the guide to detach.
    BPull out the inner drill.

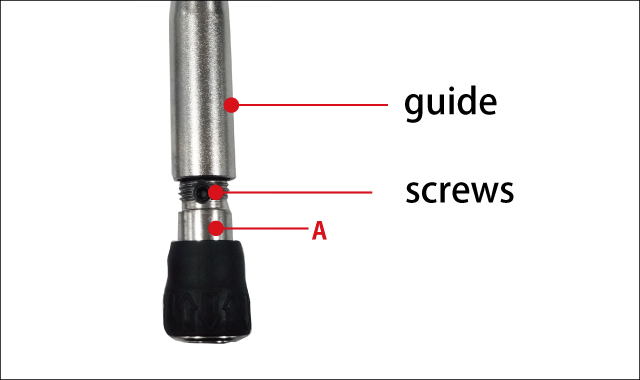

    【In the case of L】
    @Turn the guide to detach with holding at A.
    AThen the screw shows up and loosen it.
    BPull out the inner drill.

Help

Leaflet

  • leaflet

How to use

◎Without No.503W

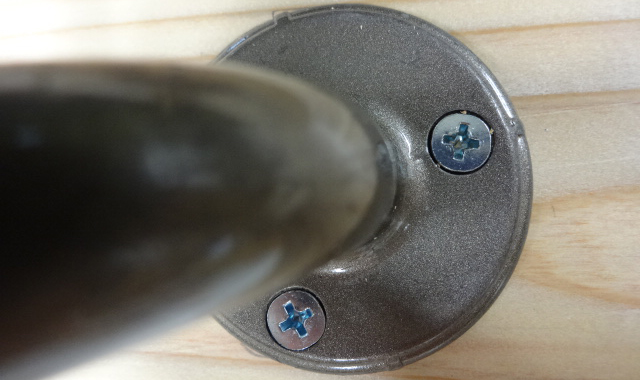

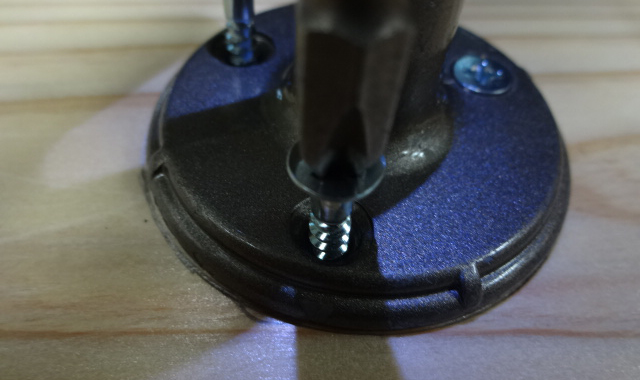

how to use without 503w 1 how to use without 503w 2 how to use without 503w 3

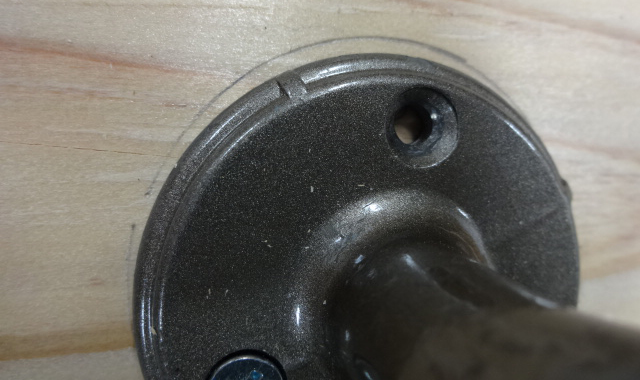

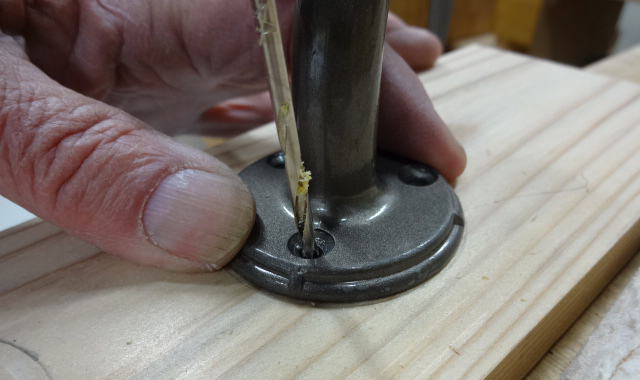

@Mark the set position and make pre-holes with a pre-hole bit. ATighten the screw. BThe metal fitting is equipped slipped off from the mark.
◎With No.503W
how to use with 503w 1 how to use with 503w 2 how to use with 503w 3
@Mark the set position and make pre-holes with No.503W. ATighten the screws. BThe metal fitting is equipped on set position exactly.
◎How to use

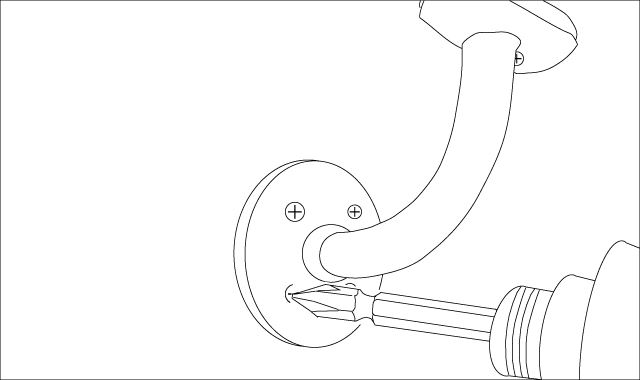

how to use 1 how to use 2 how to use 3

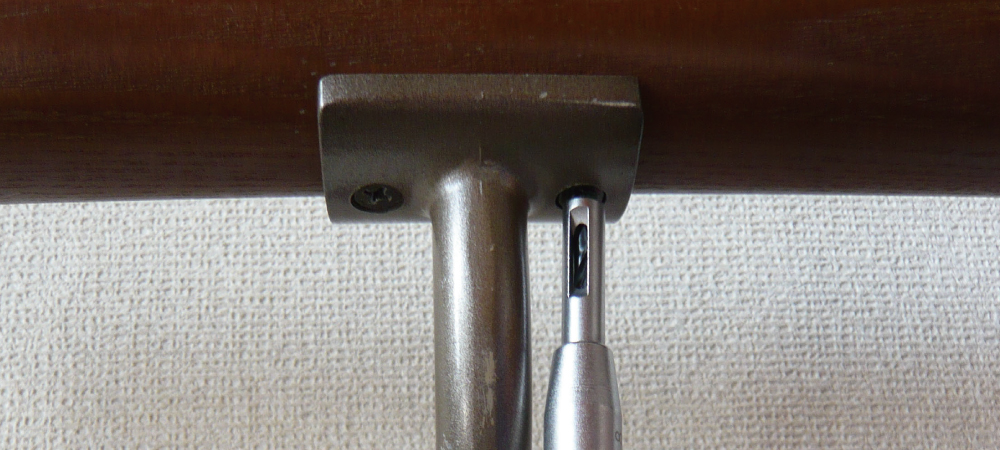

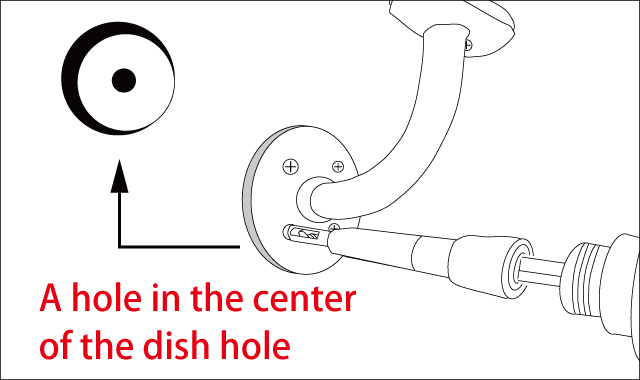

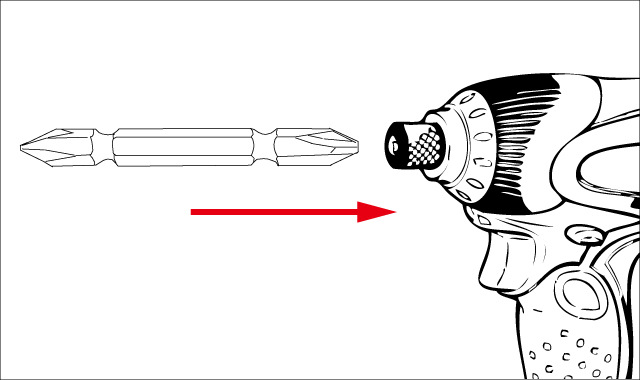

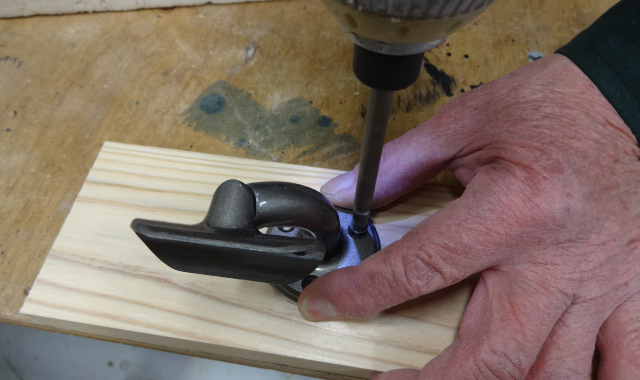

@Attach the double-end bit to a Quick Change Impact Driver. AAttach No.503W to the double-end bit. BMake pre-hole on the center of countersink.
how to use 4 how to use 5 how to use 6

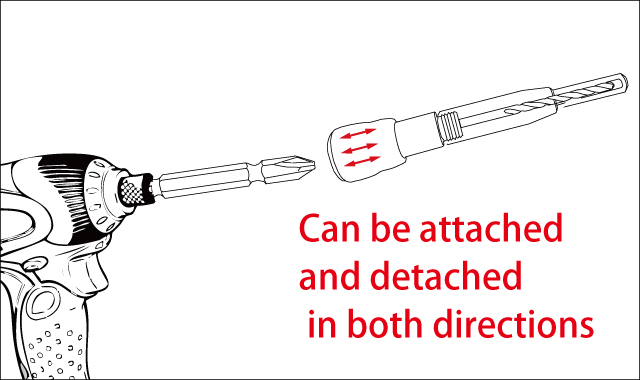

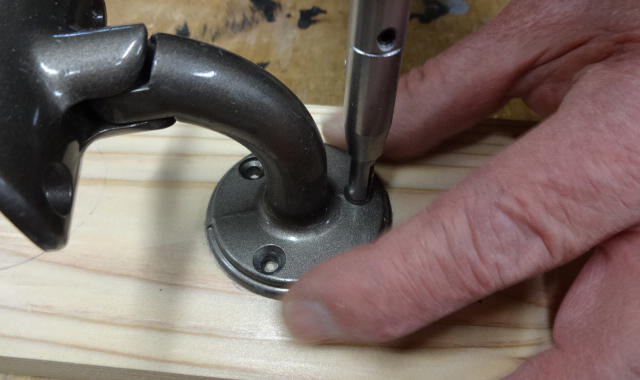

CDetach No.503W to put into @state. Detachable both directions. DTighten the screws. Image of completed Installation.
