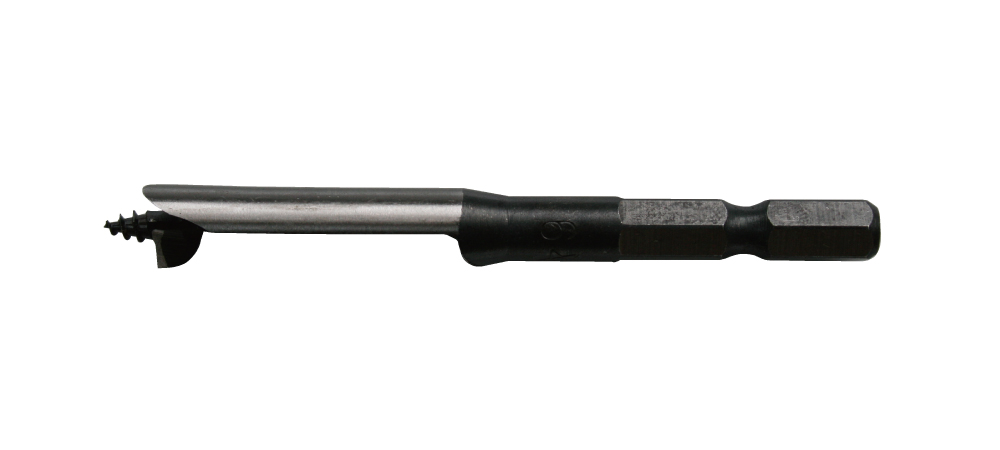

No.72/72S Form-Tie Bit / Form-Tie Bit S Type

Increase efficiency of form construction

Features

  • These bits are available for penetrating two-ply 12mm wood board.

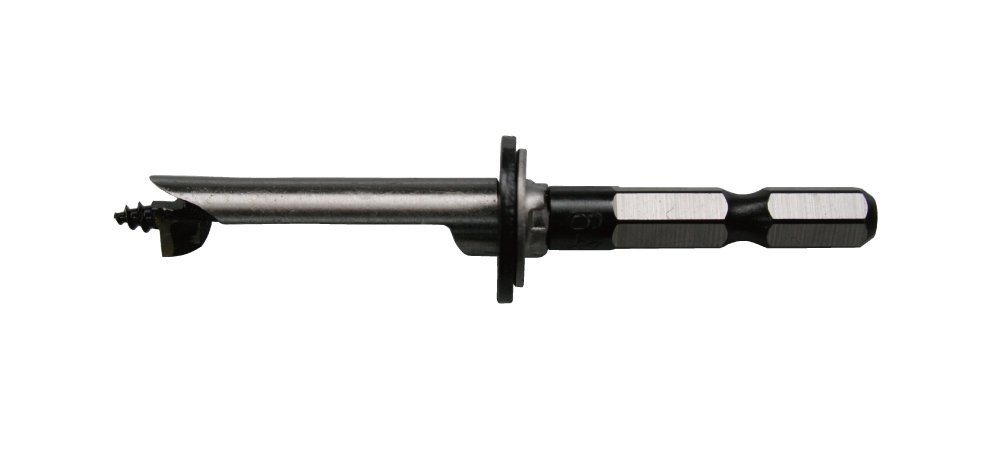

  • S Type with stopper is available fixed-depth holes.
  • S Type reduce 20% save for battery by rotary stopper.

Specifications

Usage Wood
Recommended tool(s) Quick Change Impact Driver (over 14.4V)
Cordless Drill (over 14.4V)
Electric Power Drill
RPm Range Less than 3,000 rpm
Material(s) High Carbon Steel
Markings

Sizes

  • form-tie bit size
  • form-tie bit s type size

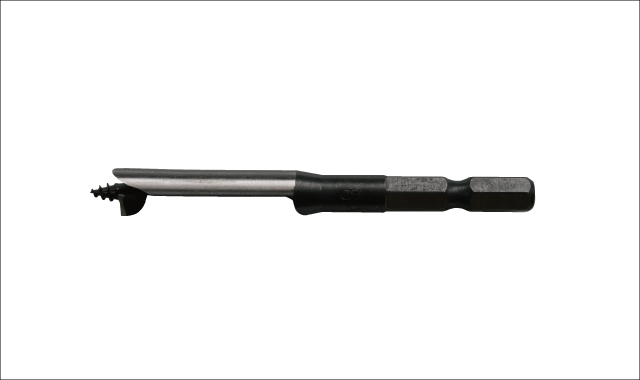

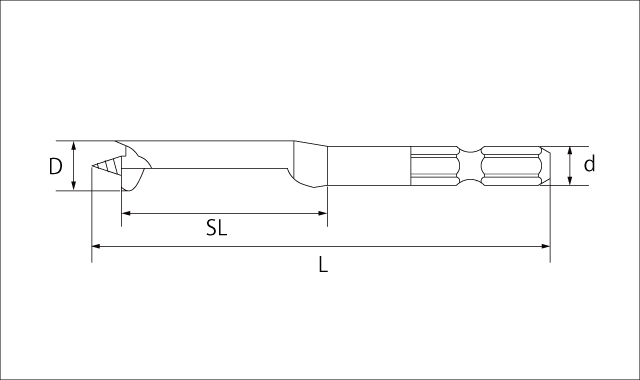

No.72 Form-Tie Bit

Without stopper

  • Size:D
  • Overall Length:L
  • Spiral Length:SL
  • Shank Shape:d
  • Unit:mm

Product No. Size Overall Length Spiral Length Shank Shape Qty (Inner Box)
72-080 8 82 37 6.35 10
72-085 8.5
72-090 9
72-100 10
72-105 10.5 83 37 6.35 10
72-120 12 84 37 6.35 10
72-135 13.5
72-150 15 85 37 6.35 10

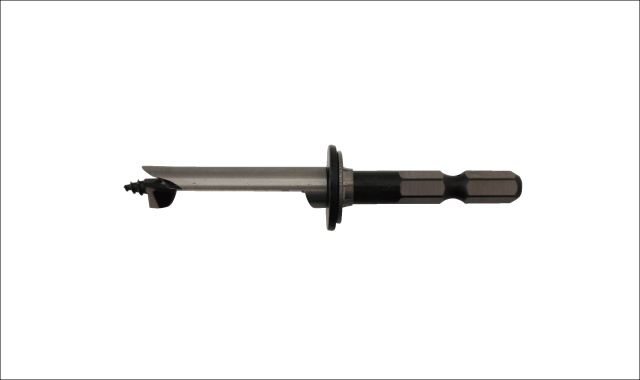

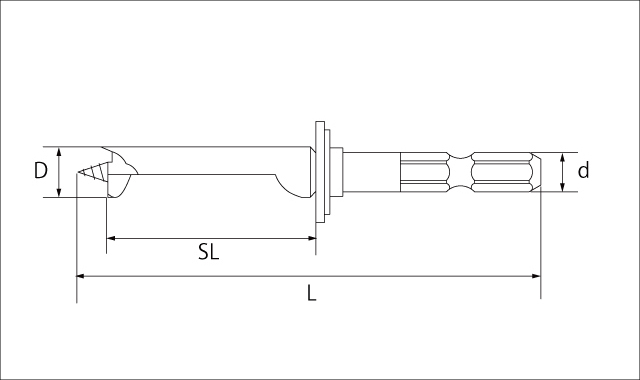

No.72S Form-Tie Bit S Type

With Stopper

  • Size:D
  • Overall Length:L
  • Spiral Length:SL
  • Shank Shape:d
  • Unit:mm

Product No. Size Overall Length Spiral Length Shank Shape Qty (Inner Box)
72S-080 8 82 37 6.35 10
72S-085 8.5
72S-090 9
72S-100 10
72S-105 10.5 83 37 6.35 10
72S-120 12 84 37 6.35 10
72S-135 13.5
72S-150 15 85 37 6.35 10

Bits of knowledge

  • 8〜15mm (each 0.5mm) are available by custom made.
  • SworDriver is convenient to make the hole for separator after construction.

Help

How to use

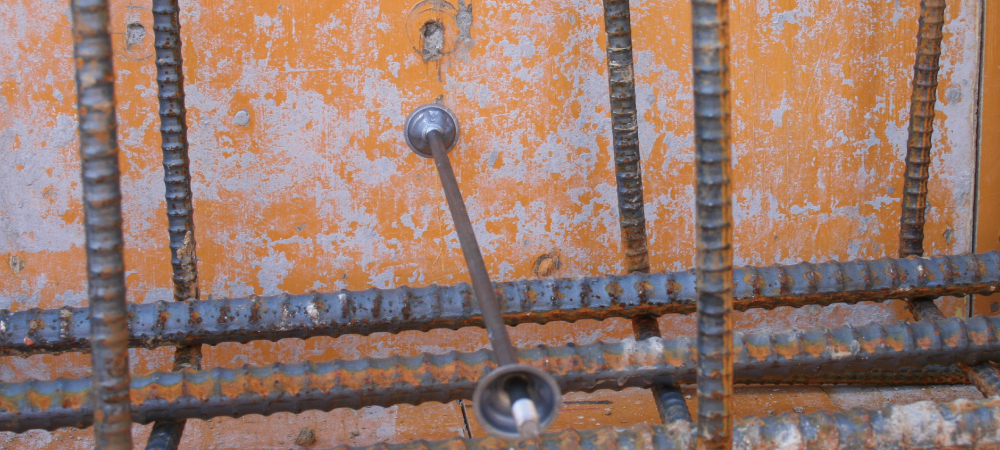

Make holes for separator. S Type with stopper increases efficiency by fixed depth holes. 「Swor Driver」 is convenient to make hole for separator after construction. Make holes for separator. Some workman uses 「Combination Auger Bit」 or 「Impact Bit」.
separator screw driver combination auger bit impact bit
