No.7S Impact Bit "Short Type"

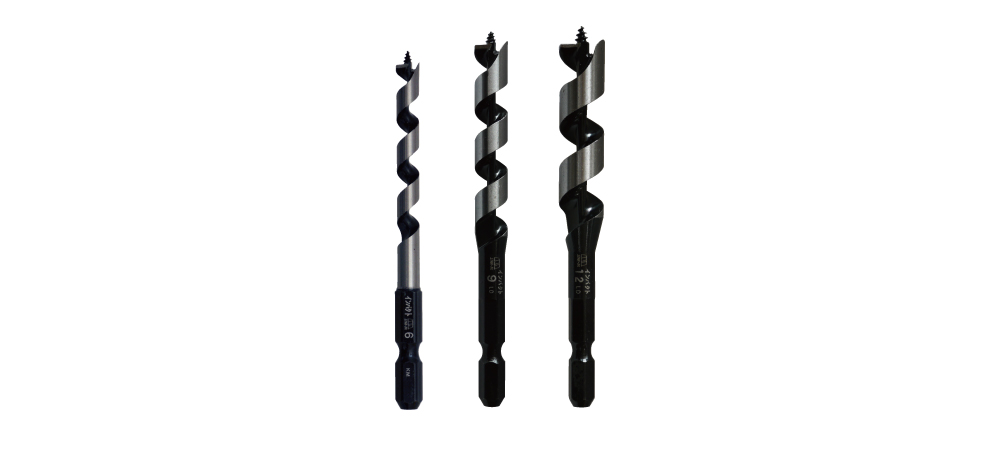

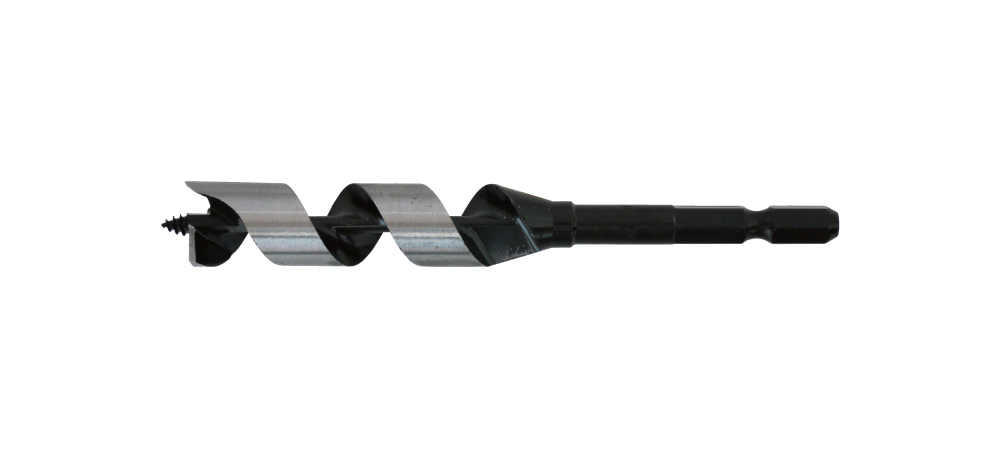

impact bit short type
extra long power augwer bit

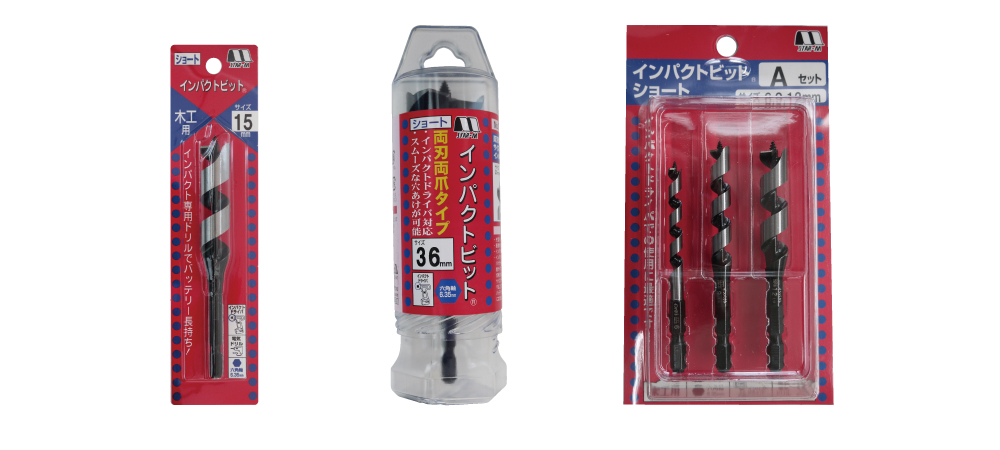

package presentation
package presentation

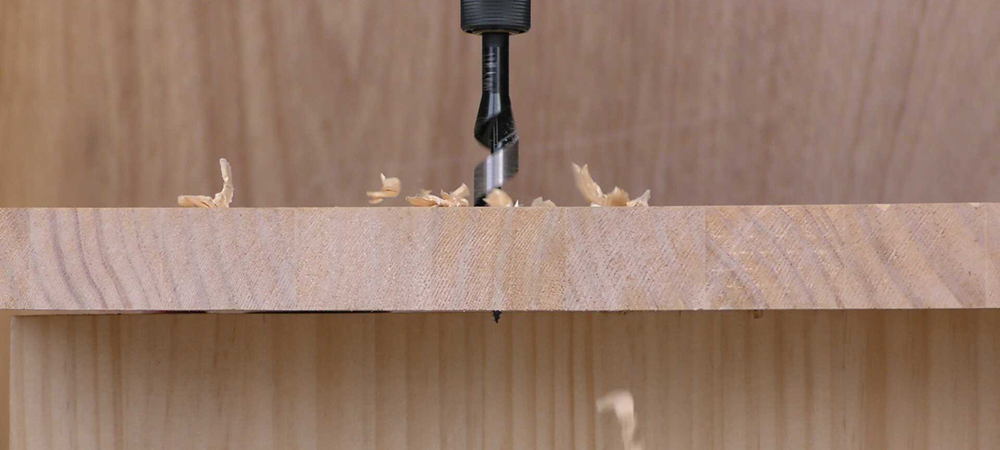

example of use

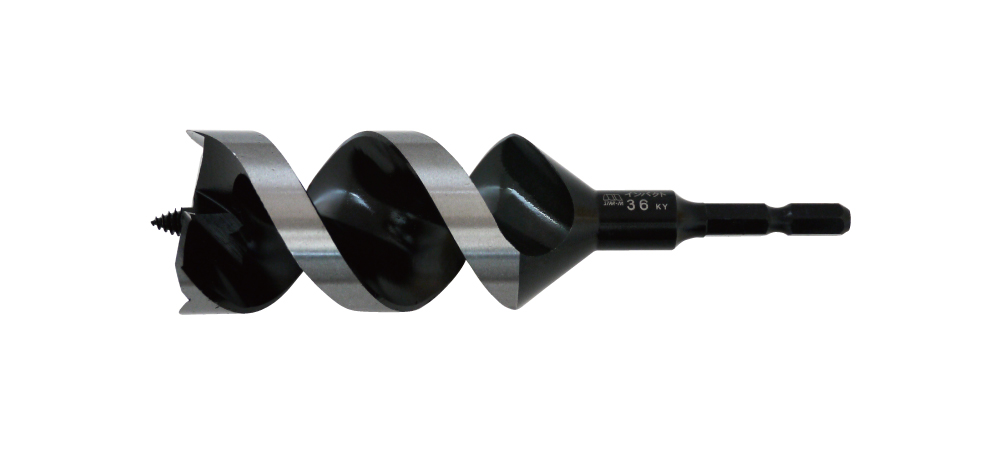

impact bit short type
impact bit short type
package presentation
package presentation
example of use
USE

Pass completely through to the other side

FEATURES

Specifications

Usage Wood
Material(s) High Carbon Steel
Recommended tool(s) Electric Power Drill (over 14.4v)
Quick Change Impact Driver (over 14.4v)
Cordless Drill
RPm Range Less than 3,000rpm
Shank Shape hexagon:Hexagon

Sizes

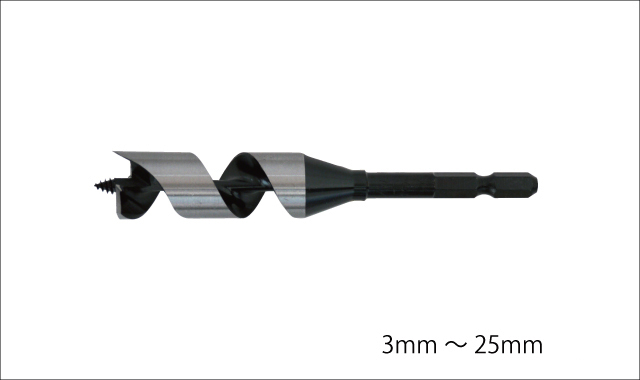

impact bit short type
size

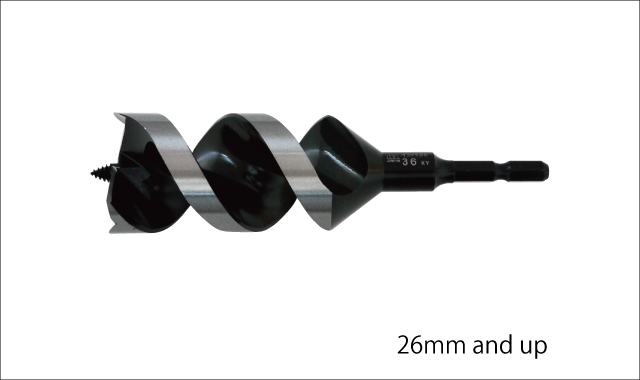

impact bit short type
size

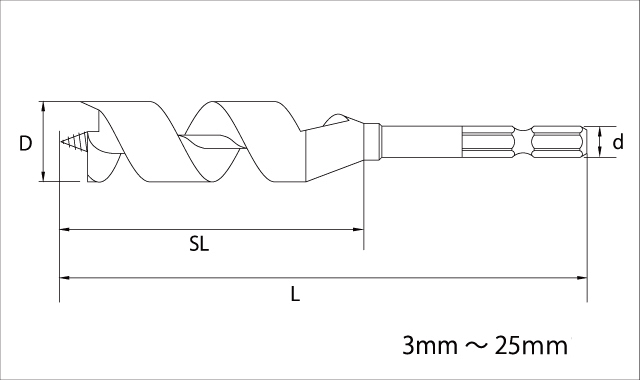

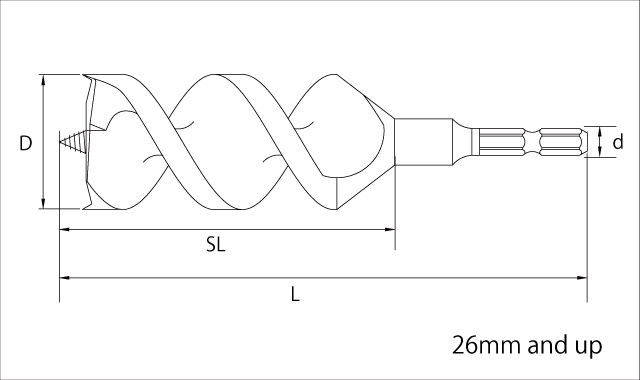

Size:D Overall Length:L Spiral Length:SL Shank Shape:d Unit:mm

Single Item

Product No. Size Overall Length Spiral Length Shank Shape
7S-030 3 80 45
6.35hexagon
7S-035 3.5 80 45
6.35hexagon
7S-040 4 80 45
6.35hexagon
7S-045 4.5 90 50
6.35hexagon
7S-050 5 90 50
6.35hexagon
7S-055 5.5 90 50
6.35hexagon
7S-060 6 90 50
6.35hexagon
7S-065 6.5 90 50
6.35hexagon
7S-070 7 90 50
6.35hexagon
7S-075 7.5 90 50
6.35hexagon
7S-080 8 90 50
6.35hexagon
7S-085 8.5 100 60
6.35hexagon
7S-090 9 100 60
6.35hexagon
7S-095 9.5 100 60
6.35hexagon
7S-100 10 100 60
6.35hexagon
7S-105 10.5 100 60
6.35hexagon
7S-110 11 100 60
6.35hexagon
7S-115 11.5 100 60
6.35hexagon
7S-120 12 100 60
6.35hexagon
7S-125 12.5 120 70
6.35hexagon
7S-130 13 120 70
6.35hexagon
7S-135 13.5 120 70
6.35hexagon
7S-140 14 120 70
6.35hexagon
7S-145 14.5 120 70
6.35hexagon
7S-150 15 120 70
6.35hexagon
7S-155 15.5 120 70
6.35hexagon
7S-160 16 120 70
6.35hexagon
7S-165 16.5 120 70
6.35hexagon
7S-170 17 120 70
6.35hexagon
7S-180 18 120 70
6.35hexagon
7S-190 19 120 70
6.35hexagon
7S-200 20 130 80
6.35hexagon
7S-210 21 130 80
6.35hexagon
7S-220 22 130 80
6.35hexagon
7S-230 23 130 80
6.35hexagon
7S-240 24 130 80
6.35hexagon
7S-250 25 130 80
6.35hexagon
7S-260 26 130 80
6.35hexagon
7S-270 27 130 80
6.35hexagon
7S-280 28 130 80
6.35hexagon
7S-290 29 130 80
6.35hexagon
7S-300 30 130 80
6.35hexagon
7S-320 32 140 90
6.35hexagon
7S-330 33 140 90
6.35hexagon
7S-350 35 140 90
6.35hexagon
7S-360 36 140 90
6.35hexagon

QTY(Inner Box):6pcs / 32mm and up 3pcs

3pcs Set

Product No. Set Description
7S-SA A Set 6・9・12mm(1pc)
7S-SB B Set 9・10.5・12mm(1pc)
7S-S060 6mm Set 6mm(3pcs)
7S-S090 9mm Set 9mm(3pcs)
7S-S105 10.5mm Set 10.5mm(3pcs)
7S-S120 12mm Set 12mm(3pcs)

QTY(Inner Box):6sets

Custom Auger Bits

Any Length and any size are available depending on your needs.
We can make various Auger Bits to comply with your needs.

Form

Bits of knowledge

Help

How to re-sharpen?

Sharpening the cutting edge
cutting edge

①Hold the bit as shown at approximately a 45-degree angle. Place the file at a near-horizontal position, making sure it is flush with the cutting edge.

cutting edge

②Touch the left edge of the file to the bit's spine, which will be used as a guide. File forward repeatedly only. Do not file in reverse.

Sharpening the spur
spur

① If the spur has any burrs, lightly file them to create a clean edge.

supr

②Hold the bit so the side of the spur is facing up. Place the file flush with the spur. File with a smooth forward motion.
