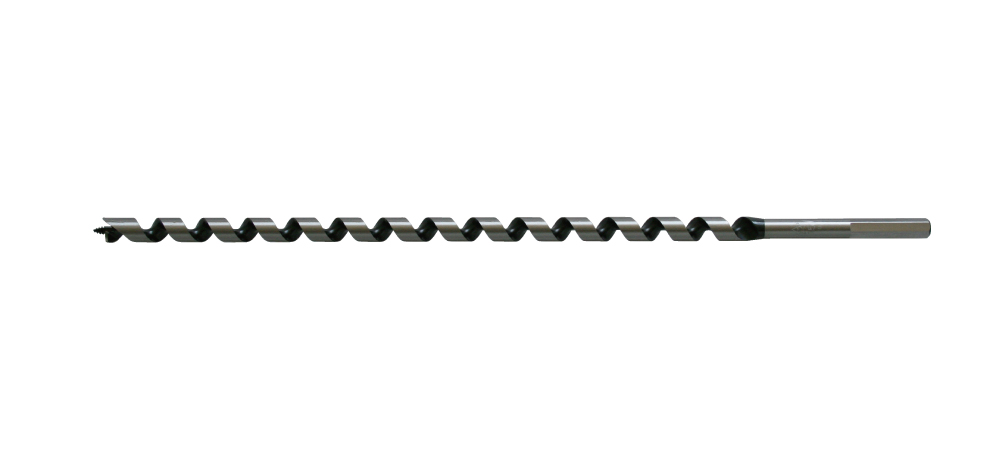

No.4L/5L/6L Extra Long Power Auger Bit

Drilling into for 240mm or deeper holes

Features

  • Burr-free lead screw for quick, on-target starts & smooth cutting.
  • Ideal for boring deeper holes.

Specifications

Usage Wood
Recommended tool(s) Electric Power Drill
RPm Range Less than 1,500 rpm
Material(s) High Carbon Steel
Re-Sharpen Yes(How to re-sharpen)
Markings marking

Sizes

  • extra long power auger bit

No.4L Overall Length 400mm

  • Size:D
  • Overall Length:L
  • Spiral Length:SL
  • Shank Shape:d
  •  Unit:mm

Product No. Size Overall Length Spiral Length Shank Shape Qty (Inner Box)
4L-060 6 400 300 5.7 6
4L-070 7 400 300 6.7 6
4L-080 8 400 300 8 6
4L-090 9 400 300 9 6
4L-100 10 400 300 10 6
4L-105 10.5
4L-110 11
4L-120 12
4L-130 13
4L-135 13.5
4L-150 15 400 300 12  6
4L-160 16
4L-180 18
4L-190 19
4L-210 21
4L-220 22
4L-240 24
4L-270 27
4L-300 30

No.5L Overall Length 500mm

  • Size:D
  • Overall Length:L
  • Spiral Length:SL
  • Shank Shape:d
  •  Unit:mm

Product No. Size Overall Length Spiral Length Shank Shape Qty (Inner Box)
5L-060 6 500 400 5.7 6
5L-070 7 500 400 6.7 6
5L-080 8 500 400 8 6
5L-090 9 500 400 9 6
5L-100 10 500 400 10 6
5L-105 10.5
5L-110 11
5L-120 12
5L-130 13
5L-135 13.5
5L-150 15 500 400 12 6
5L-160 16
5L-180 18
5L-190 19
5L-210 21
5L-220 22
5L-240 24
5L-270 27
5L-300 30

No.6L Overall Length 600mm

  • Size:D
  • Overall Length:L
  • Spiral Length:SL
  • Shank Shape:d
  •  Unit:mm

Product No. Size Overall Length Spiral Length Shank Shape Qty (Inner Box)
6L-070 7 600 500 6.7 6
6L-090 9 600 500 9 6
6L-100 10 600 500 10 6
6L-120 12
6L-150 15 600 500 12 6
6L-160 16
6L-180 18
6L-210 21
6L-220 22
6L-240 24
6L-270 27
6L-300 30

Bits of knowledge

  • When certain boring depths are needed, a Drill Stopper can be used.
  • When boring deep holes, lift the drill bit periodically.
  • Custom Auger bits can be made to order. (Form)

Help

Leaflet

  • leaflet

How to re-sharpen?

Sharpening the cutting edge
sharpening the cutting edge sharpening the cutting edge
1.Hold the bit as shown at approximately a 45-degree angle. Place the file at a near-horizontal position, making sure it is flush with the cutting edge. 2. Touch the left edge of the file to the bit's spine, which will be used as a guide. File forward repeatedly only. Do not file in reverse.
Sharpening the spur
sharpening the spur sharpening the spur
1. If the spur has any burrs, lightly file them to create a clean edge. 2. Hold the bit so the side of the spur is facing up. Place the file flush with the spur. File with a smooth forward motion.
