PRODUCT INFO

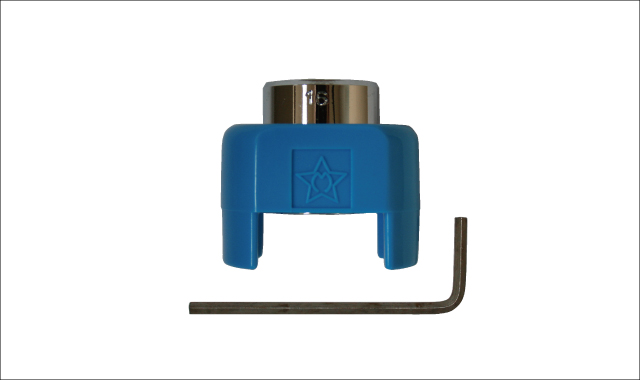

No.5005 Drill Stopper

Ideal for drilling consistently to the correct, pre-determined depth

Features

  • Can be drilled consistently to the correct, pre-determined depth.
  • Designed for unique materials to avoid some damaged on the workpiece.
  • Can be used with all kinds of drills for wood, steel and concrete.

Specifications

Material(s) Body:Duracon
Metal:High Carbon Steel
Caution
  • Do not use with Hammer Drills.
  • Carefully securing a screw in place using.

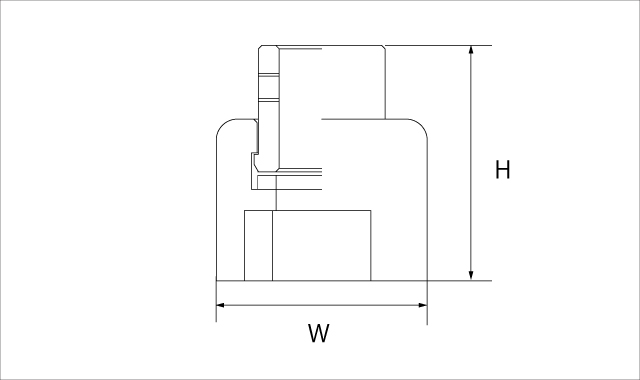

Sizes

  • drill stopper size

  • Height:H
  • Width:W
  •  Unit:mm

Product No. Size Color Height Width Qty (Inner Box)
5005-030 3 25 22 3
5005-040 4 3
5005-050 5 3
5005-060 6 3
5005-080 8 28 26 3
5005-090 9 3
5005-100 10 3
5005-105 10.5 31 30 3
5005-110 11 3
5005-120 12 3
5005-130 13 41 38 2
5005-135 13.5 2
5005-150 15 2
5005-160 16 43 46 2
5005-180 18 2
5005-210 21 51 52 2
5005-240 24 54 57 2
5005-270 27 64 63 2
5005-300 30 68 68 2

Bits of knowledge

  • Can be fitted with a Drill stopper of up to 0.5mm differences. Ex. 5.5mm drill can be used with 6mm Drill stopper.
  • Designed for easy to come off a drill from workpiece used a screw point drill.

Q&A

  1. 1. What size Drill stopper can be used for countersink No.58S, 58X, 58XW of 10mm ?
    Please use a Drill stopper of 10mm.

Help

How to use

◎How to fix a Drill stopper

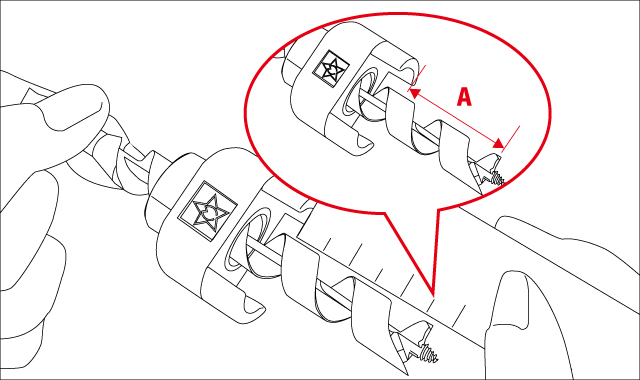

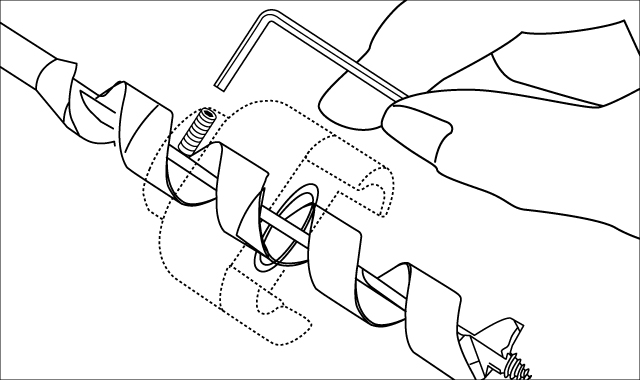

@Fix the depth [a]. ATighten a screw on the flute at the required depth.
Fix the depth Tighten a screw on the flute at the required depth.
