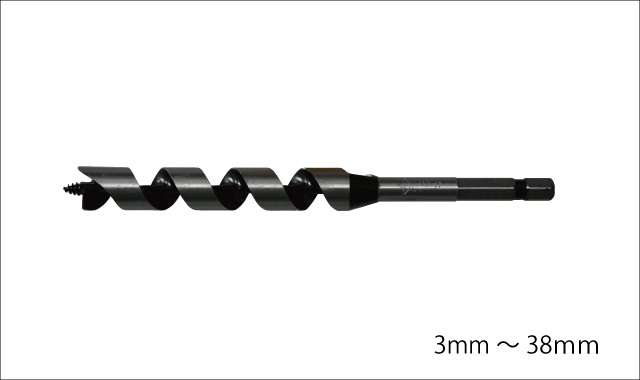

No.6 Combination Auger Bit

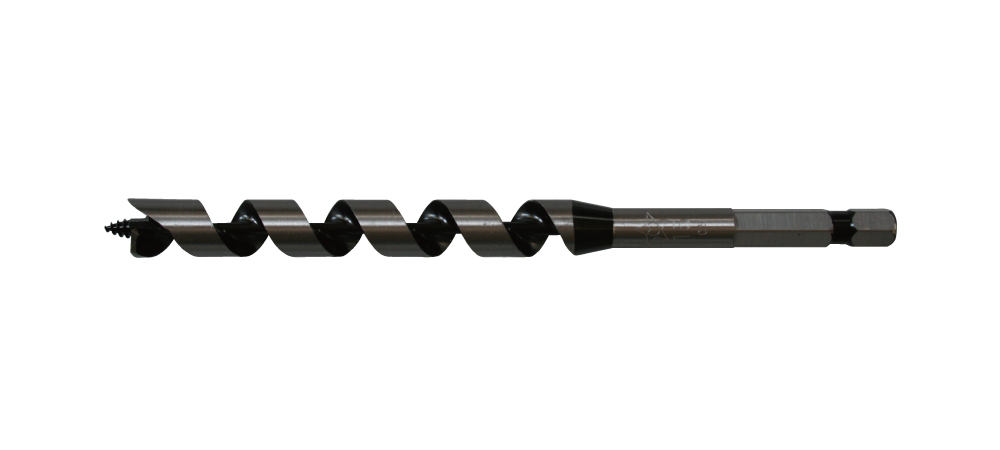

combination auger bit

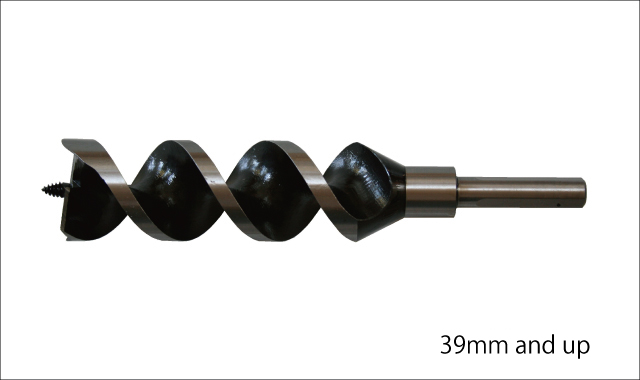

combination auger bit
package presentation

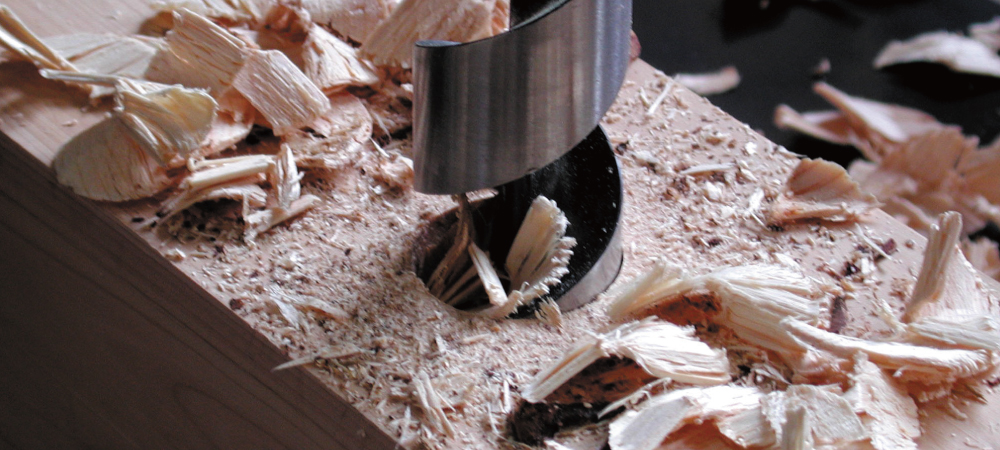

example of use

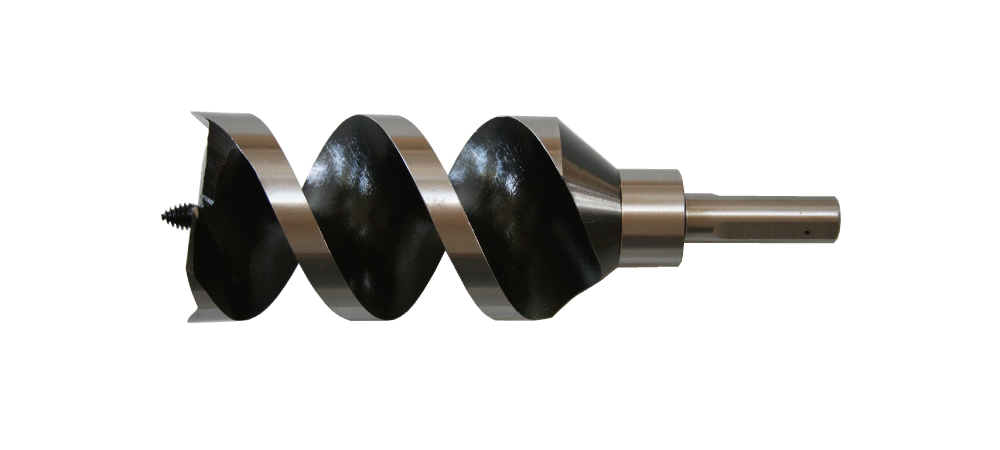

combination auger bit
combination auger bit
package presentation
example of use
USE

Pass completely through to the other side

FEATURES

Specifications

Usage Wood
Material(s) High Carbon Steel
Recommended tool(s) Electric Drill
Cordless Drill (over 14.4V)
Quick Change Impact Driver (Less than 13mm) (over 14.4V)
RPm Range 3mm~19mm:Less than 3,000rpm
19.5mm~40mm:Less than 1,500rpm
41mm and up:Less than 1,300rpm
Shank Shape hexagon:Hexagon three flats:Three Flats

Sizes

combination auger bit
size
combination auger bit
size

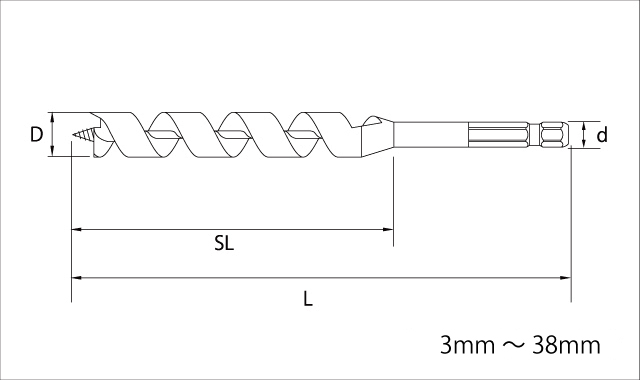

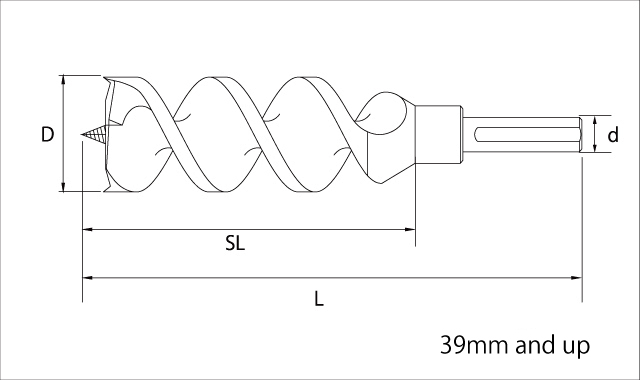

Size:D Overall Length:L Spiral Length:SL Shank Shape:d Unit:mm

Product No. Size Overall Length Spiral Length Shank Shape
6-030 3 110 60
6.35hexagon
6-035 3.5 120 70
6.35hexagon
6-040 4 120 70
6.35hexagon
6-045 4.5 140 90
6.35hexagon
6-050 5 140 90
6.35hexagon
6-055 5.5 160 100
6.35hexagon
6-060 6 160 100
6.35hexagon
6-065 6.5 170 100
6.35hexagon
6-070 7 170 100
6.35hexagon
6-075 7.5 170 100
6.35hexagon
6-080 8 170 100
6.35hexagon
6-085 8.5 180 110
6.35hexagon
6-090 9 180 110
6.35hexagon
6-095 9.5 190 120
6.35hexagon
6-100 10 190 120
6.35hexagon
6-105 10.5 190 120
6.35hexagon
6-110 11 190 120
6.35hexagon
6-115 11.5 190 120
6.35hexagon
6-120 12 190 120
6.35hexagon
6-125 12.5 190 120
6.35hexagon
6-130 13 190 120
6.35hexagon
6-135 13.5 200 130
10hexagon
6-140 14 200 130
10hexagon
6-145 14.5 200 130
10hexagon
6-150 15 200 130
10hexagon
6-155 15.5 200 130
10hexagon
6-160 16 200 130
10hexagon
6-165 16.5 200 130
10hexagon
6-170 17 200 130
10hexagon
6-175 17.5 200 130
10hexagon
6-180 18 200 130
10hexagon
6-185 18.5 200 130
10hexagon
6-190 19 200 130
10hexagon
6-195 19.5 210 140
10hexagon
6-200 20 210 140
10hexagon
6-205 20.5 210 140
10hexagon
6-210 21 210 140
10hexagon
6-215 21.5 210 140
10hexagon
6-220 22 210 140
10hexagon
6-225 22.5 210 140
10hexagon
6-230 23 210 140
10hexagon
6-235 23.5 210 140
10hexagon
6-240 24 210 140
10hexagon
6-245 24.5 210 140
10hexagon
6-250 25 210 140
10hexagon
6-255 25.5 210 140
10hexagon
6-260 26 210 140
10hexagon
6-265 26.5 210 140
10hexagon
6-270 27 210 140
10hexagon
6-275 27.5 210 140
10hexagon
6-280 28 210 140
10hexagon
6-285 28.5 210 140
10hexagon
6-290 29 210 140
10hexagon
6-295 29.5 210 140
10hexagon
6-300 30 210 140
10hexagon
6-310 31 210 140
12hexagon
6-320 32 210 140
12hexagon
6-330 33 210 140
12hexagon
6-340 34 210 140
12hexagon
6-350 35 210 140
12hexagon
6-360 36 210 140
12hexagon
6-370 37 210 140
12hexagon
6-380 38 210 140
12hexagon
6-390 39 210 140
12three flats
6-400 40 210 140
12three flats
6-410 41 210 140
12three flats
6-420 42 210 140
12three flats
6-430 43 210 140
12three flats
6-440 44 210 140
12three flats
6-450 45 210 140
12three flats
6-460 46 210 140
12three flats
6-470 47 210 140
12three flats
6-480 48 210 140
12three flats
6-490 49 210 140
12three flats
6-500 50 210 140
12three flats

QTY(Inner Box:6pcs / 31mm~36mm 3pcs / 37mm~40mm 2pcs / 41mm and up 1pc

Custom Auger Bits

Any Length and any size are available depending on your needs.
We can make various Auger Bits to comply with your needs.

Form

Bits of knowledge

Help

How to re-sharpen?

Sharpening the cutting edge
cutting edge

①Hold the bit as shown at approximately a 45-degree angle. Place the file at a near-horizontal position, making sure it is flush with the cutting edge.

cutting edge

②Touch the left edge of the file to the bit's spine, which will be used as a guide. File forward repeatedly only. Do not file in reverse.

Sharpening the spur
spur

① If the spur has any burrs, lightly file them to create a clean edge.

supr

②Hold the bit so the side of the spur is facing up. Place the file flush with the spur. File with a smooth forward motion.

Associated Product

impact bit middle type
drill stopper

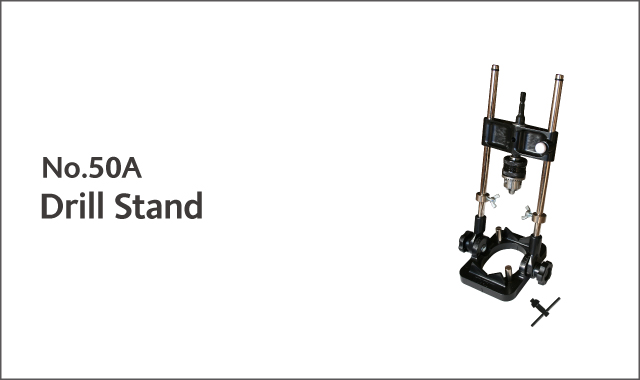

drill stand

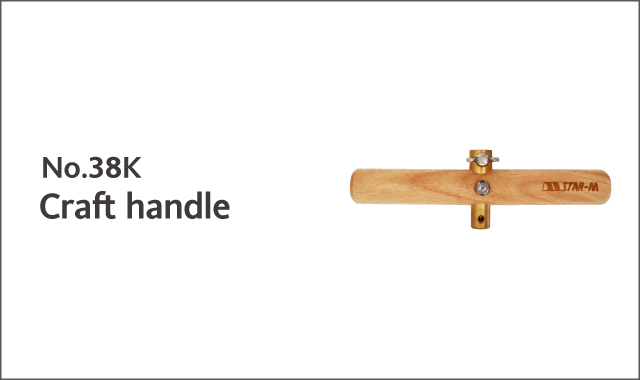

Craft handle
