No.5040 Broken Screw Remover

Ideal for remove broken screws

Features

  • Can be removed broken screws.
  • No damaged to the surrounding work pieces and allows to re-screw at the same place.
  • A Pin can be used several times.

Specifications

Usage Wood
Recommended tool(s) Quick Change Impact Driver (over 14.4V)
Cordless Drill (over 14.4V)
RPm Range Less than 3,000 rpm
Material(s) Chuck:High Carbon Steel
Pin:High Carbon Steel
Cylinder:High Carbon Steel
Bar:H.S.S.
Markings
Caution
  • Use a Pin in the range of the recommended screw.
  • Always wear Personal Protective Equipment for eyes, ear and respiratory protection.
  • Do not remove a broken screw from hard woods it may come off.
  • When remove a broken screw from a Pin with a Cylinder, grip the Pin and Cylinder securely on the flat base before operation.
  • Do not drive a Pin unnecessary into a broken screw as it may come off.

Sizes

  • broken screw remover size

Product No. Set contents Qty (Inner Box)

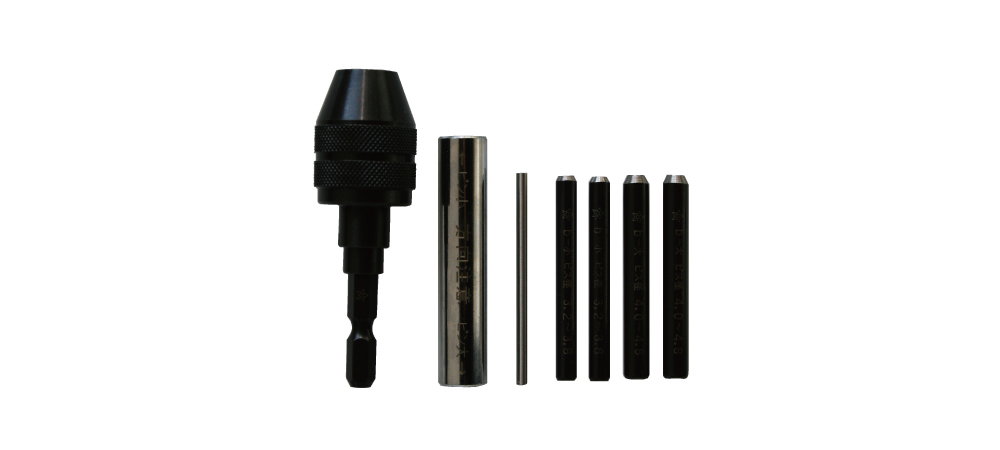

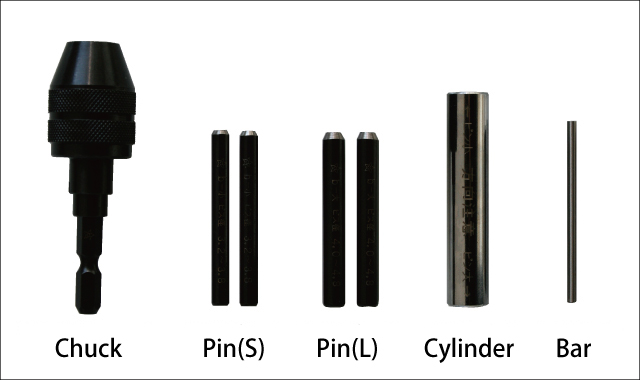

5040 Chuck, Cylinder, Bar : each 1pc
Pin (S) (L) : each 2pcs
6

Assembly

※Click to open expanded view. Press [ESC] to close or click [×] to close.

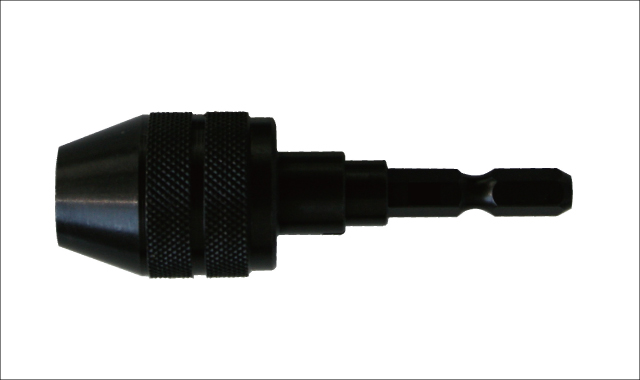

Chuck

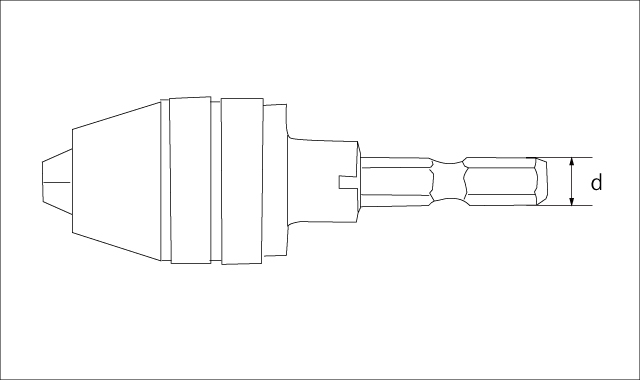

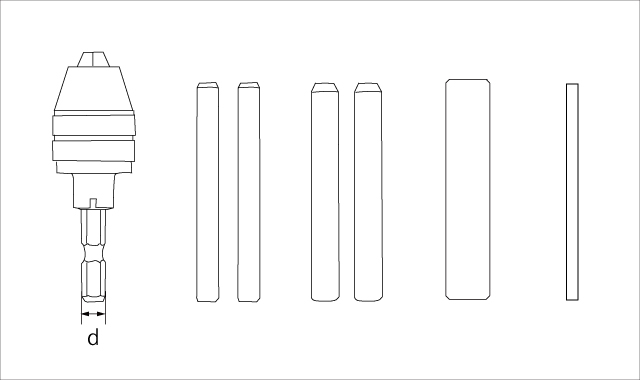

  • chuck size

  • Shank Shape:d
  •  Unit:mm

Product No. Shank Shape Qty (Inner Box)
5040-A 6.35 1

Pin

  • 専用ピン-小 寸法図
  • 専用ピン-大 寸法図

Product No. Size Recommended Screw Sizes Qty (Inner Box)

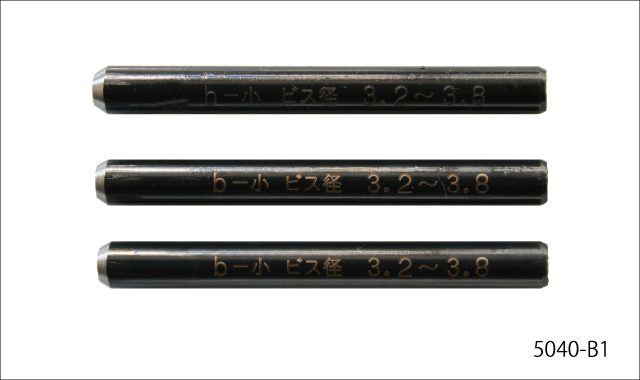

5040-B1 S (3pcs) 3.2mm〜3.8mm 6

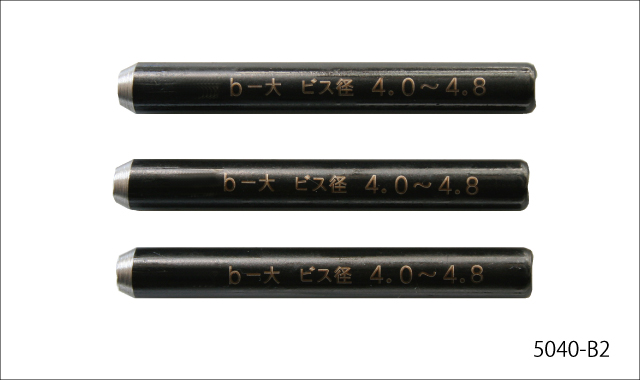

5040-B2 L (3pcs) 4.0mm〜4.8mm 6

Cylinder

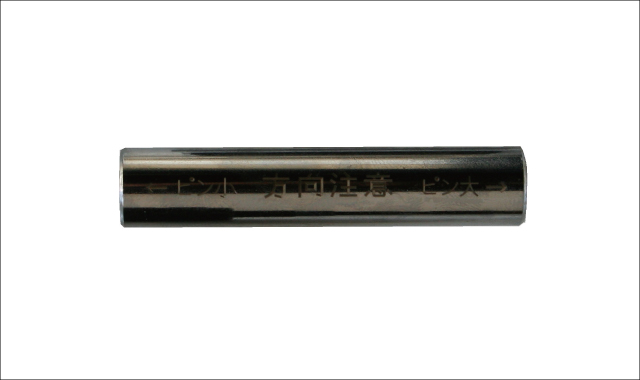

  • cylinder size

Product No. Qty (Inner Box)
5040-C 1

Bar

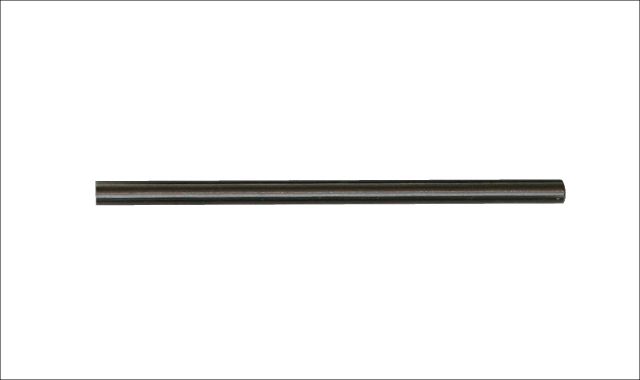

  • bar size

Product No. Qty (Inner Box)
5040-D 1

Bit of knowledge

Help

Leaflet

  • leaflet

How to use

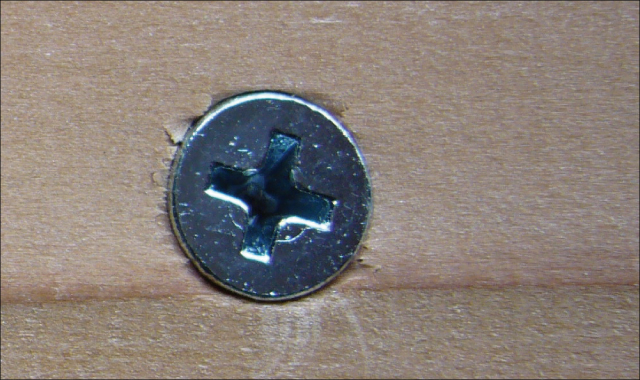

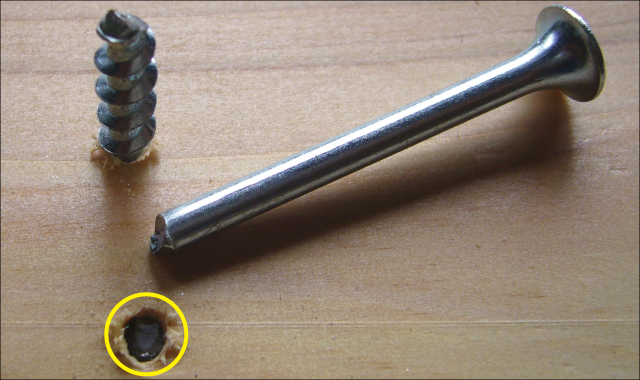

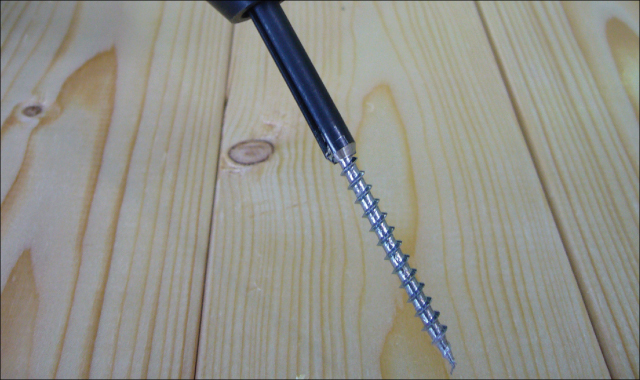

Broken a screw in the work piece. Drive a proper pin into the screw. Tighten the screw with a chuck by rotating reverse.

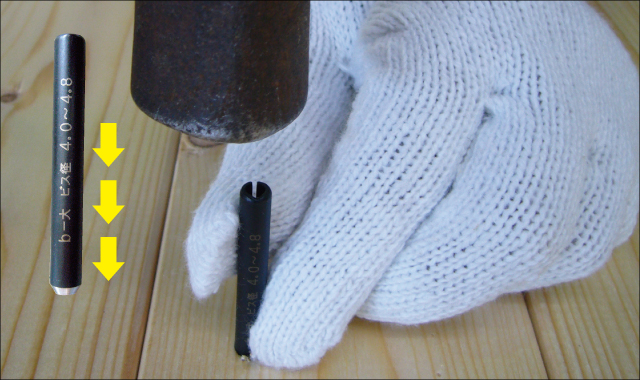

@Broken a screw in the work piece. ADrive a proper pin into the screw. BTighten the screw with a chuck by rotating reverse.

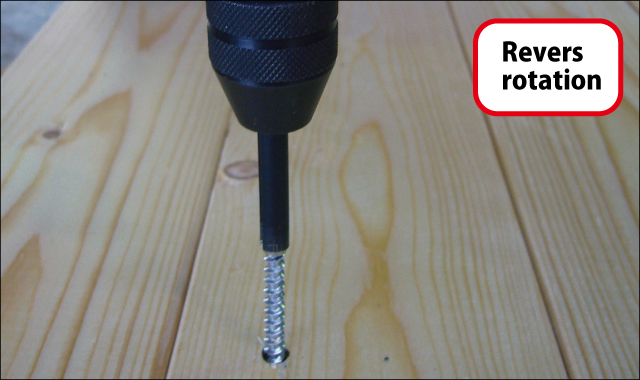

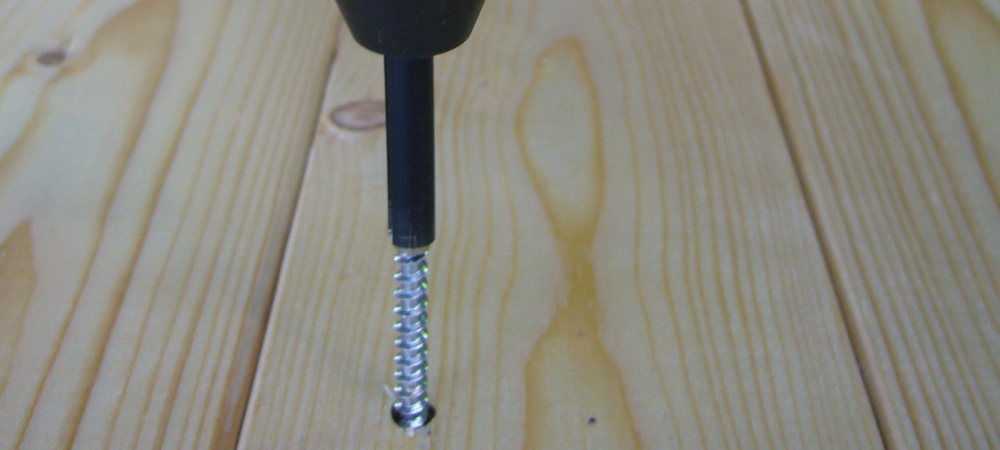

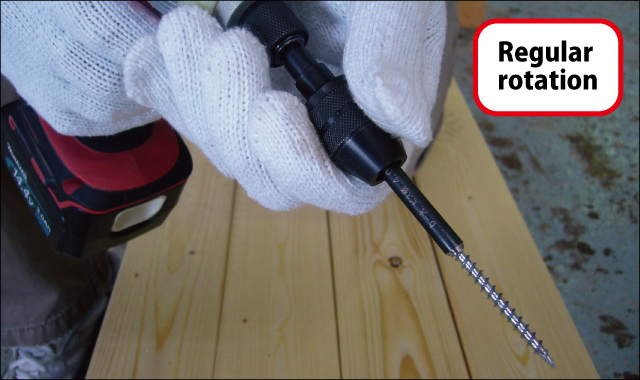

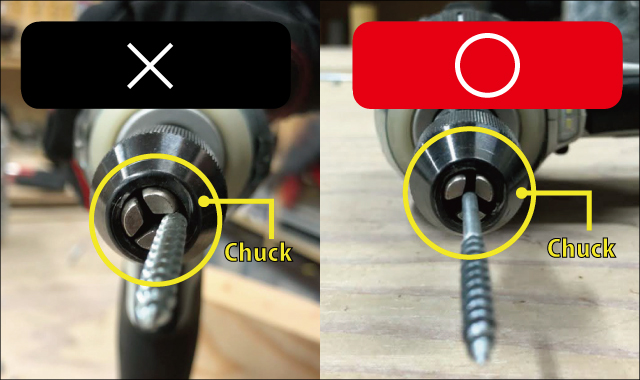

Rotate the Chuck in reverse. Remove the screw from a work piece. Removed the screw Grip a Chuck securely. Remove the screw from the Chuck in regular rotation with a Quick change impact driver.
CRotate the Chuck in reverse. Remove the screw from a work piece. DRemoved the screw. EGrip a Chuck securely. Remove the screw from the Chuck in regular rotation with a Quick change impact driver.

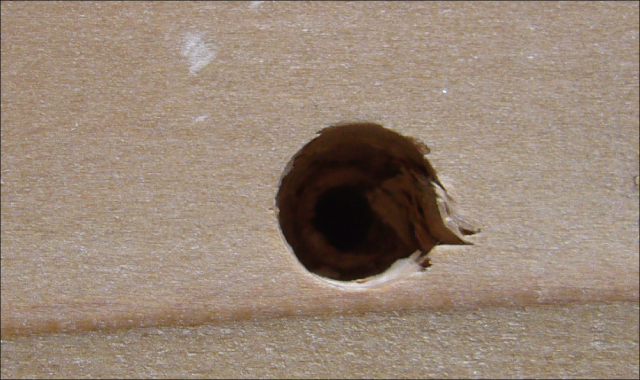

Remove the screw from a Cylinder by driving a bar into a Pin. No damaged to the surrounding work piece. Can be re-screwed at the same place.
FRemove the screw from a Cylinder by driving a bar into a Pin. GNo damaged to the surrounding work piece. HCan be re-screwed at the same place.

※When broken the screw at more than 10mm from the surface, please proceed the instruction-4, 5 and 6.

Associated Product

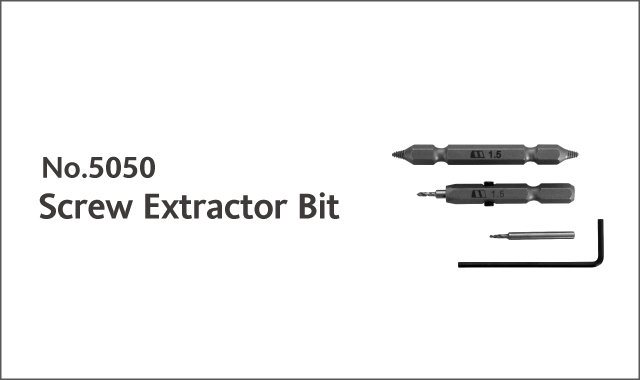

  • screw extract bit
