PRODUCT INFO

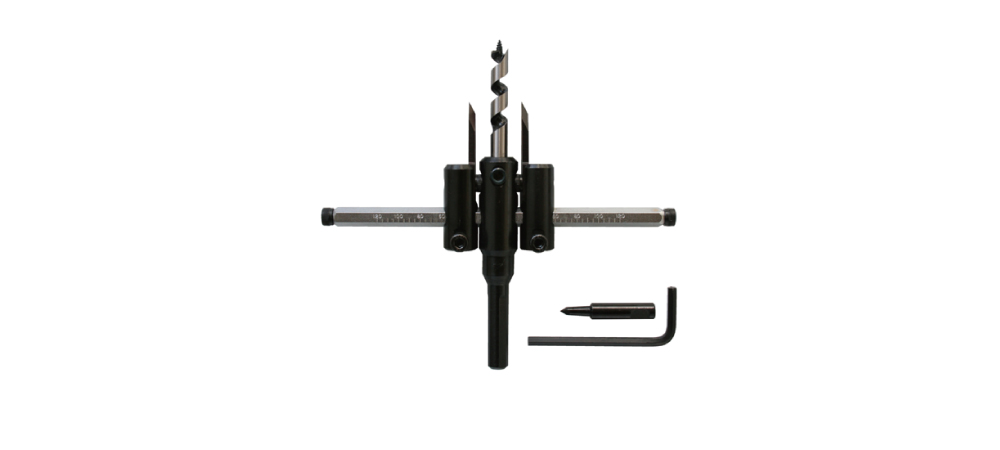

No.36 Adjustable Circle Cutter

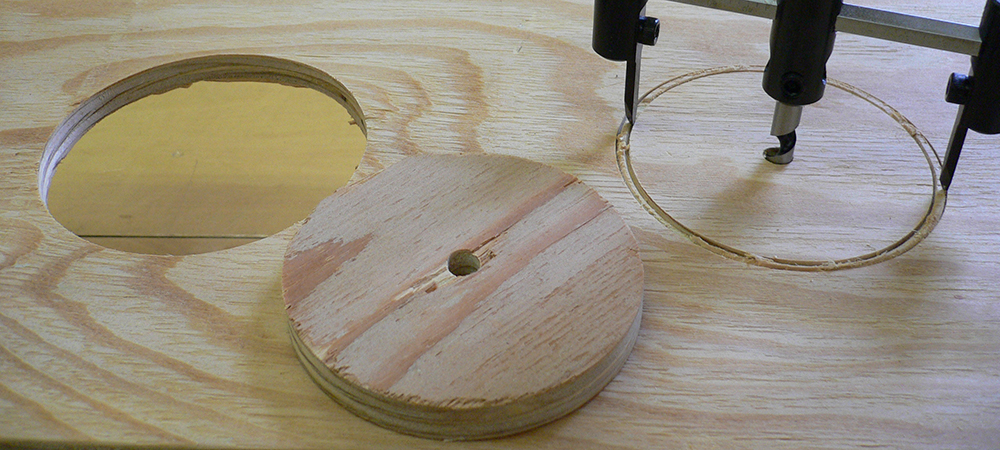

For drilling a hole for ceiling light, pipe , duct in wood

Features

  • Range in size 30mm to 120mm.
  • With the use of Long Bar 200mm or 300mm as an optional attachment, drilling 200mm or upto 300mm diameter is available.
  • Smooth and speed work by twin-blades.
  • Use the hex wrench in the attachment to adjust the sizes.
  • Changing the center drill to the plain brad point drill, drilling into Gypsum Board is available.

Specifications

Usage Wood
Gypsum Board
Recommended tool(s) Electric Power Drill
RPm Range Bar Length 120mm:Less than 1,500 rpm
Bar Length 200mm:Less than 1,300 rpm
Bar Length 300mm:Less than 600 rpm
Material(s) Body:High Carbon Steel
Center Drill:High Carbon Steel
Replaceable Blade:High Speed Steel
Capacity Bar Length 120mm:Hole sizes 30mm - 120mm
Bar Length 200mm:Hole sizes 30mm - 200mm
Bar Length 300mm:Hole sizes 30mm - 300mm
Applicable depth:Single face 25mm / Both face 50mm
Markings

Sizes

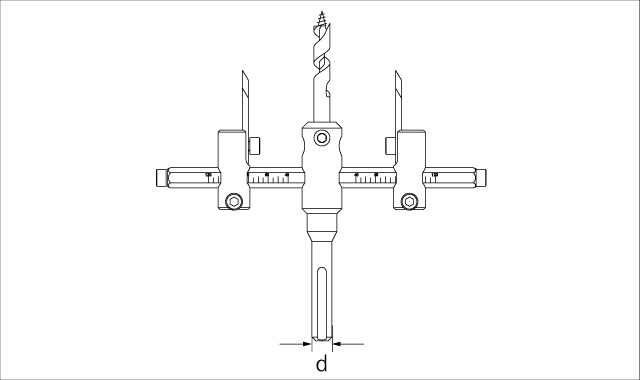

  • 自在錐 寸法図

  • Unit:mm

Product No. Name Size Shank Shape Qty (Inner Box)
36 Set 30×120 10 6

Assembly

※Click to open expanded view. Press [ESC] to close or click [×] to close.

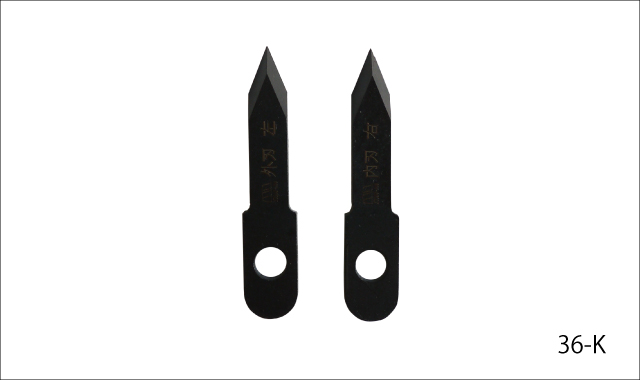

Replaceable Blade

  • replaceable blade size

Product No. Description Qty (Inner Box)
36-K 2pcs Set 6

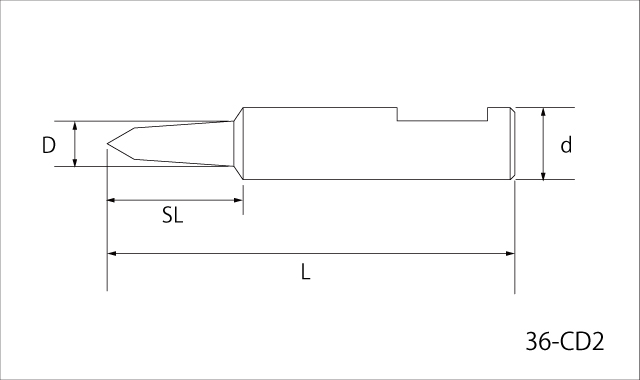

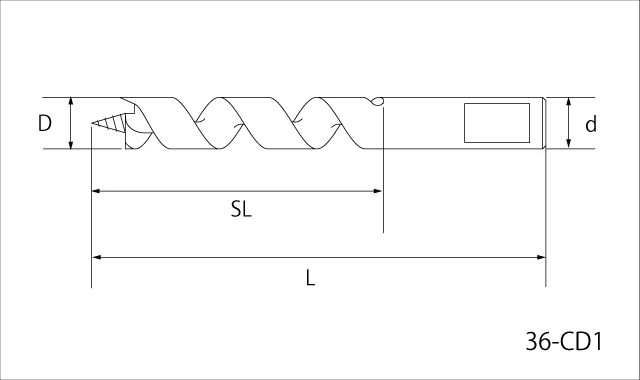

Center Drill

  • center drill size
  • center drill size

  • Size:D
  • Overall Length:L
  • Spiral Length:SL
  • Shank Shape:d
  • Unit:mm

Product No. Name Size Overall Length Spiral Length Shank Shape Qty (Inner Box)

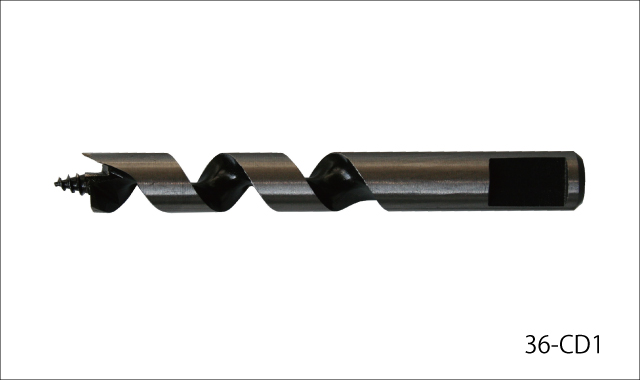

36-CD1 For Plates  8  70 45  8 1

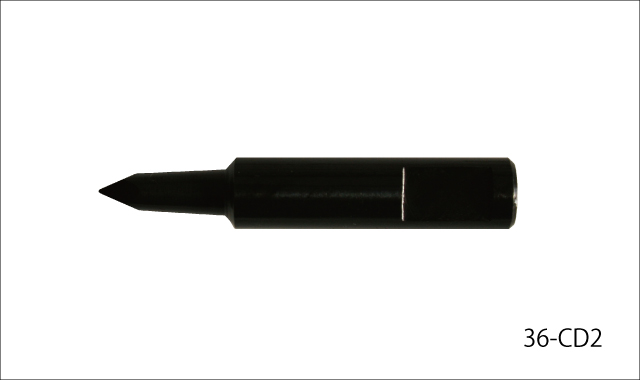

36-CD2 For Gypsum Board  5  45 15 8 1

※36-CD1 : Shared use of replaceable center drill No.5010.

Bar

  • bar size

  • Unit:mm

Product No. Length Thickness Qty (Inner Box)

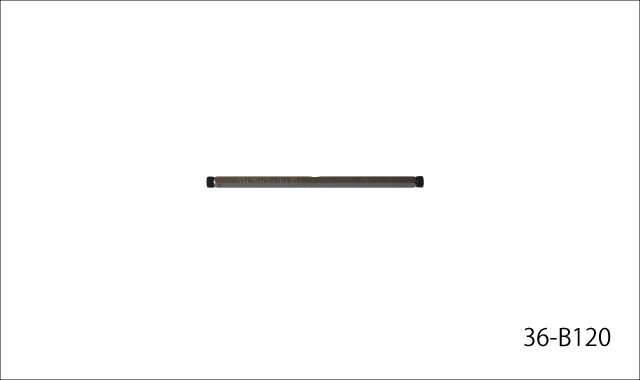

36-B120 120 8 1

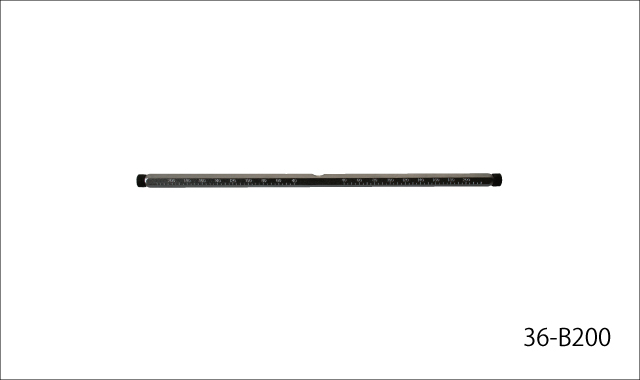

36-B200 200 8 1

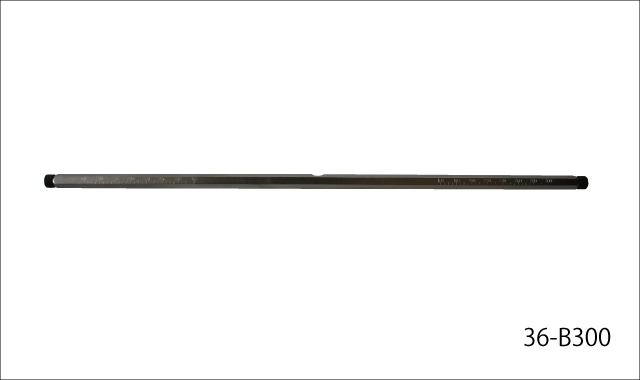

36-B300 300 8 1

※ Bar includes safety stopper.

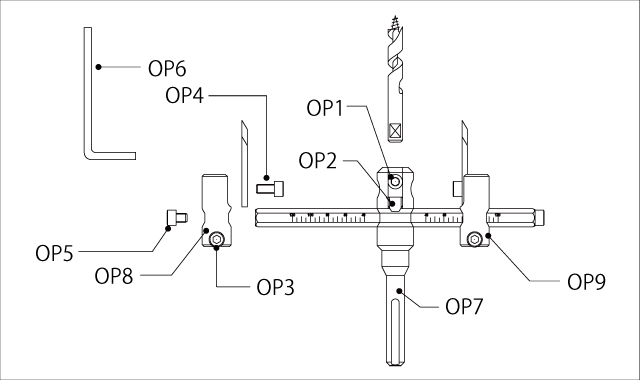

Other Assembly

  • other assembly

  • Unit:mm

Product No. Name Size Qty (Inner Box)
36-OP1 Center Drill set screw 8×8 1

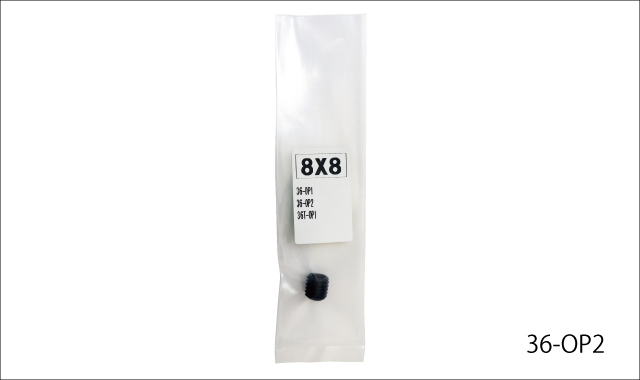

36-OP2 Bar set screw 8×8 1

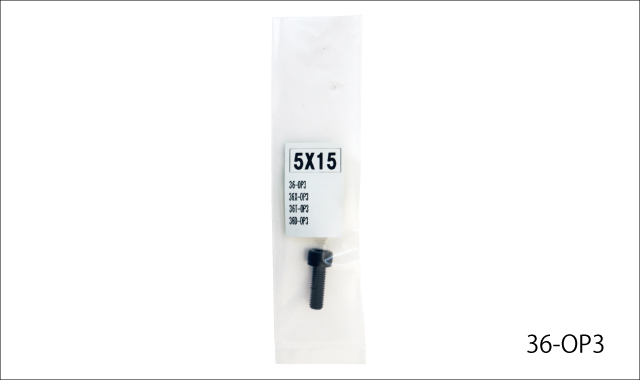

36-OP3 Holder set screw (1pc) 5×15 1
36-OP4 Replaceable Blade set screw (1pc) 5×10 1

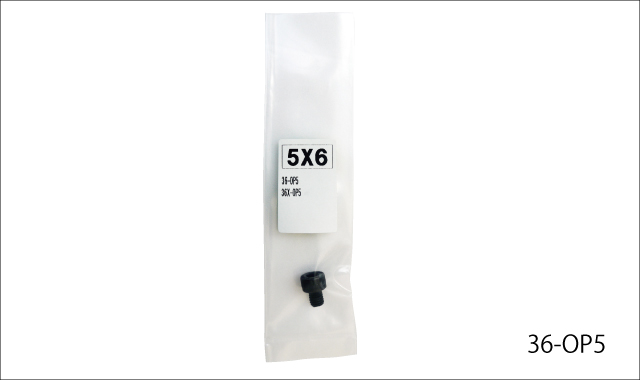

36-OP5 Safety Stopper (1pc) 5×6 1

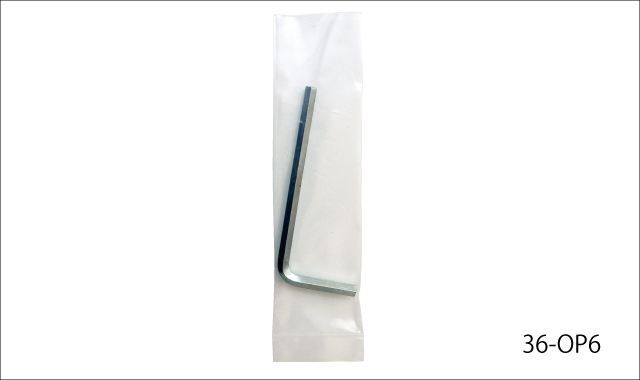

36-OP6 Hex Wrench 4 1

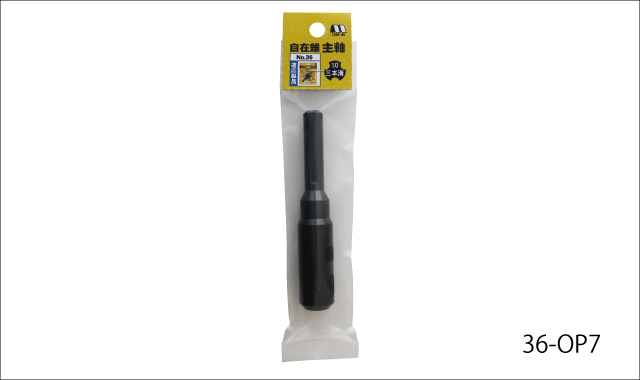

36-OP7 Main Shaft - 1

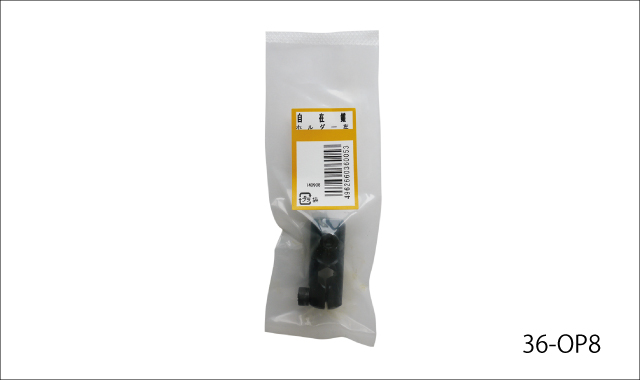

36-OP8 Holder without Replaceable Blade Left 1

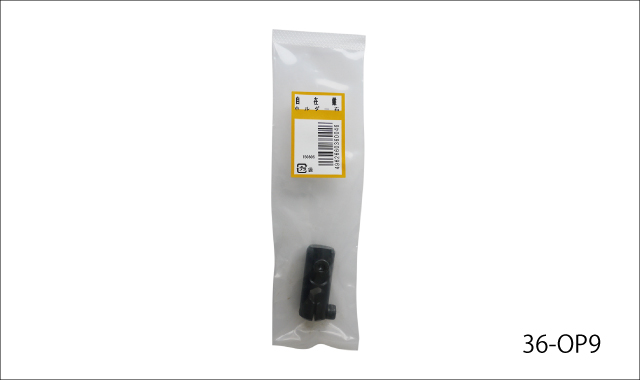

36-OP9 Holder without Replaceable Blade Right 1

※ Main shaft includes center drill set screw and bar set screw.

※ Holder includes holder set screw and replaceable blade set screw.

Bits of knowledge

  • Changing Bits the attached standard bar to the optional bar of 200mm (36-B200), or 300mm (36-B300), drilling capacity will also be 30mm to 200mm, or to 30mm to 300mm.
  • Long bar of another Adjustable circle cutter will not be able to fit.

Q&A

  1. 1. Adjustable Circle Cutter bar is unsteady
    There might be a problem loosen the Center Drill Set Screw. Loosen the Center Drill first and then tighten the Bar set screw. After tightening the Bar set Screw, re-built the bar.
    ※ Safety procedure: Wear Gloves before the work.

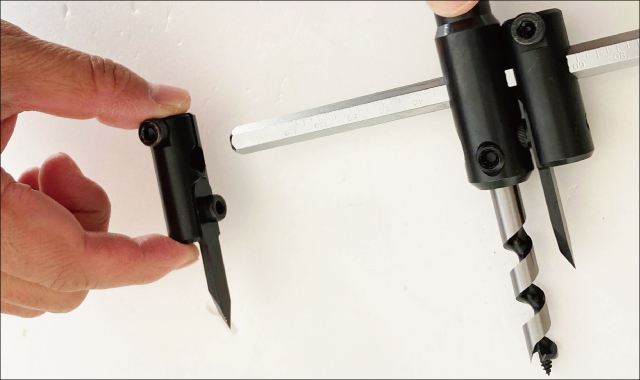

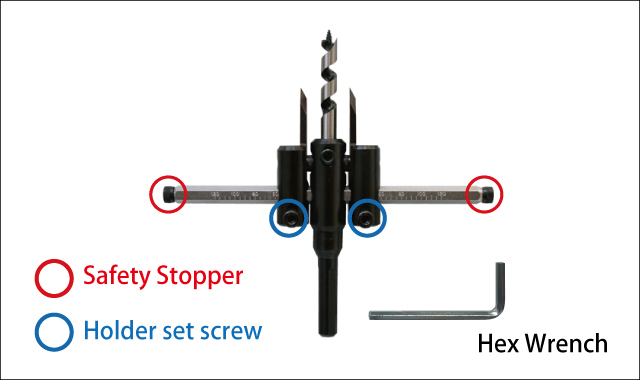

    @ Loosen the Safety Stopper with the attached Hex Wrench. (For both right & left) A Loosen the Holder Set Screw. (For both right & left) B Pull out the Holder from the bar. (For both right & left)
    Loosen the Safety Stopper with the attached Hex Wrench Loosen the Holder Set Screw Pull out the Holder from the bar.

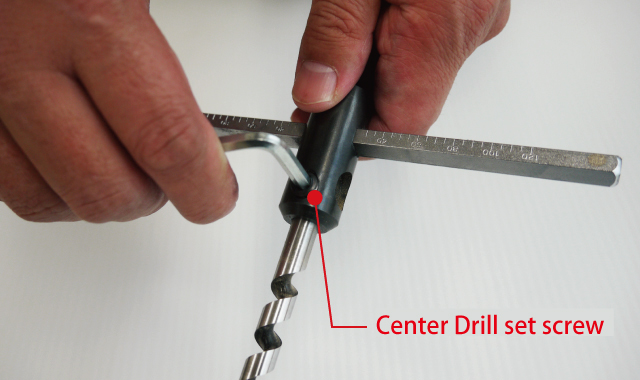

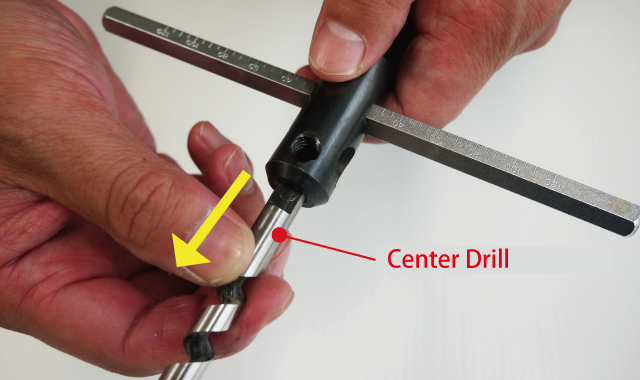

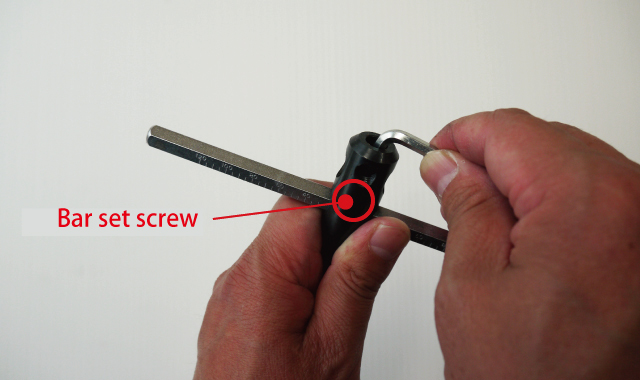

    C Loosen the Center Drill Set Screw. D Pull out the Center Drill. E Tighten the Bar Set Screw.
    Loosen the Center Drill Set Screw Pull out the Center Drill. Tighten the Bar Set Screw.
  2. 2. Can we use it with the Drill Press Machine?
    No. Do not use it with the drilling machines as the machine may pull up the work. Not only for the Adjustable Circle Cutter series, all the drill bit with the leading screw may pull up the work. Always use the brad point type when you use it with the Drill Press Machine.

Help

Adjustable Circle Cuter series Other Assembly list (PDF)
Adjustable Circle Cuter series Other Assembly list
Adjustable Circle Cuter series Other Assembly list

How to retighten and exchange the bar and center drill? (PDF)

Procedure for retighten and exchange the bar Procedure for exchange the Center Drill
Procedure for retighten and exchange the bar Procedure for exchange the Center Drill
