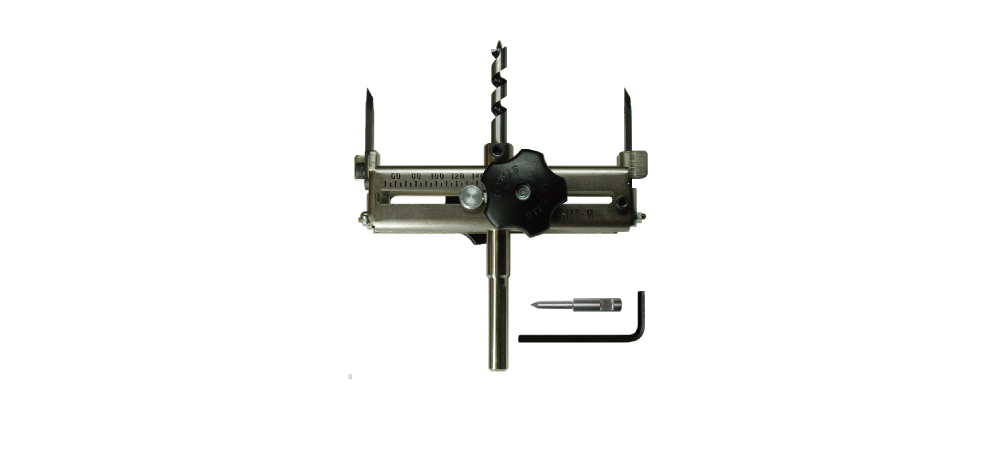

No.5010 Quick Adjustable Circle Cutter

No need tools for adjusting the cutting size
For ceiling light, pipe and for duct

Features

  • Range in size 60mm to 200mm.
  • CLT-28mm thickness can be drilled in one time.
  • Smooth and speed work by twin-blades.
  • Easy size adjustment without tools. You only need to loosen the black handle for both side and move the cutting edges.
  • Changing the center drill to the plain brad point drill, drilling into gypsum board will be available.

Features

Usage Wood
Gypsum Board
CLT-28mm
Recommended tool(s) Electric Power Drill
RPm Range Less than 1,500 rpm
Material(s) Body:High Carbon Steel
Center Drill:High Carbon Steel
Spare Blade:High Speed Steel
Capacity Hole sizes 60mm - 200mm
Applicable depth :Single face 30mm / Both face 60mm
Markings

Sizes

  • quick adjustable circle cutter

  • Unit:mm

Product No. Name Size Shank Shape Qty (Inner Box)
5010 Set 60×200 10 2

Assembly

※Click to open expanded view. Press [ESC] to close or click [×] to close.

Replaceable Blade

  • replaceable blade size

Product No. Description Qty (Inner Box)
5010-K 2pcs Set 6

Center Drill

  • center drill size
  • center drill size

  • Size:D
  • Overall Length:L
  • Spiral Length:SL
  • Shank Shape:d
  •  Unit:mm

Product No. Name Size Overall Length Spiral Length Shank Shape Qty (Inner Box)

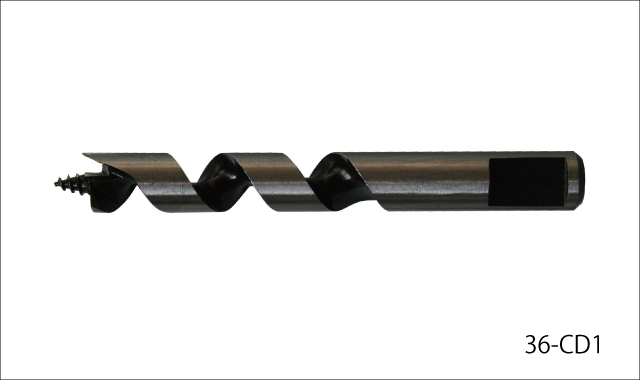

36-CD1 For Plates 8 70 45 8 1

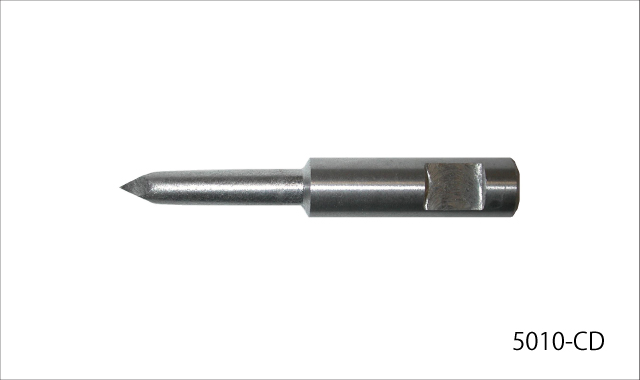

5010-CD For Gypsum Board 5 52 25 8 1

※36-CD1:Shared use of replaceable center drill for No.36.

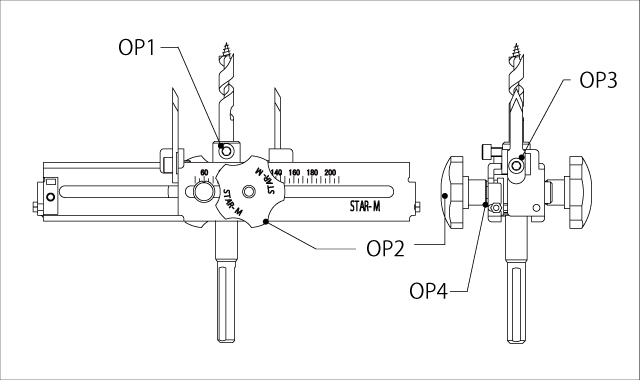

Other Assembly

  • quick adjustable circle cutter parts

  • Unit:mm

Product No. Name Size Qty (Inner Box)

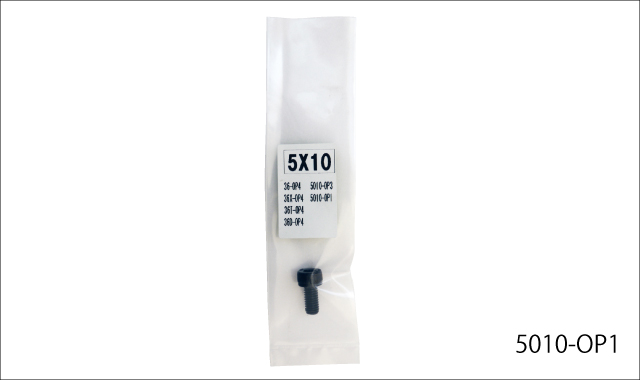

5010-OP1 Center Drill set screw 5×10 1
5010-OP2 Handle without washer (1pc) - 1
5010-OP3 Replaceable Blade set screw (1pc) 5×10 1
5010-OP4 Washer for Handle (1pc) - 1

Bits of knowledge

  • Changing Bits the attached No.5010-CD Center Drill for gypsum board, drilling into gypsum board is available.
  • 3 kinds of Quick Adjustable Circle Cutter series are commonly used. By changing the center drill, replaceable blade, it can be used for the materials what you choose.

Q&A

  1. 1. Can we fix the snapped wire by ourselves?
    It should be fixed at the manufactures. Contact to the shop where you bought, or to the nearest hard ware shop.
