PRODUCT INFO

No.501 T.C.T. Adjustable Countersink

Set a drill you have and it becomes a countersink

Features

  • Applied sizes of 3.0mm 〜7.2mm for auger bits steel drills set up which can be countersink hole.

Specifications

Usage Wood
Thin Steel (No Stainless)
Recommended tool(s) Electric Power Drill
Material(s) High Carbon Steel with T.C.T.
Markings
Caution
  • No use Hammer Drill, Quick Change Impact Driver.
  • No stainless boring.

Sizes

Product No. Applicable drill bit Qty (Inner Box)
501 3.0mm〜7.2mm 10

Help

Measurement of countersink usage

  • Unit:(mm)

Inner drill size 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.2
Outer drill size 11.0 11.5 12.0 12.5 13.0 13.5 14.0 15.0 16.0

How to use

◎How to use
Normal countersink work Countersink with plug work
Normal countersink work Countersink with plug work
◎Set up
Drill goes through Fixed he depth
@Drill goes through AFixed he depth
Set up with center Tighten a screw on even
BSet up with center CTighten a screw on even

Associated Product

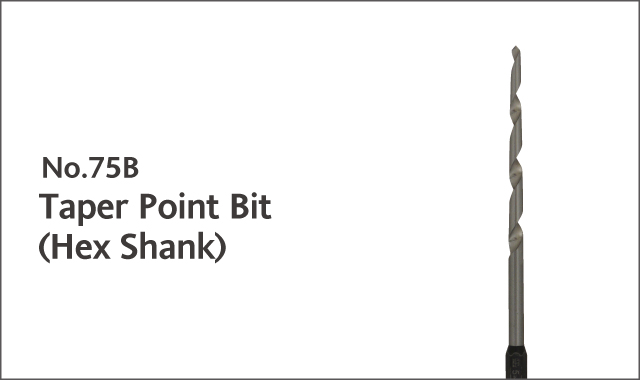

  • taper point bit

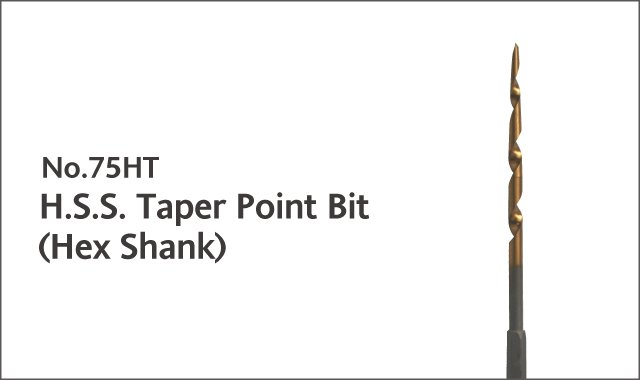

  • h.s.s. taper point bit

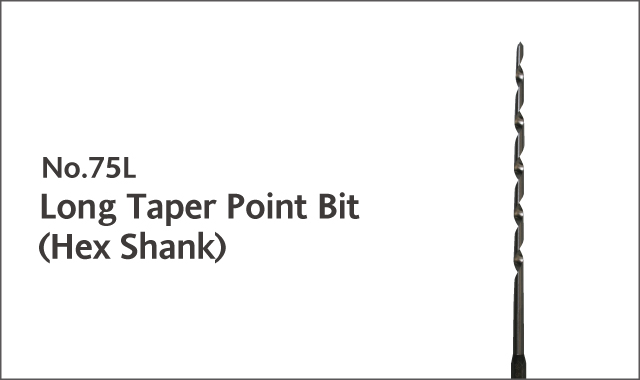

  • long taper point bit
