No.58S Countersink & Plug Cutter

countersink&plug cutter

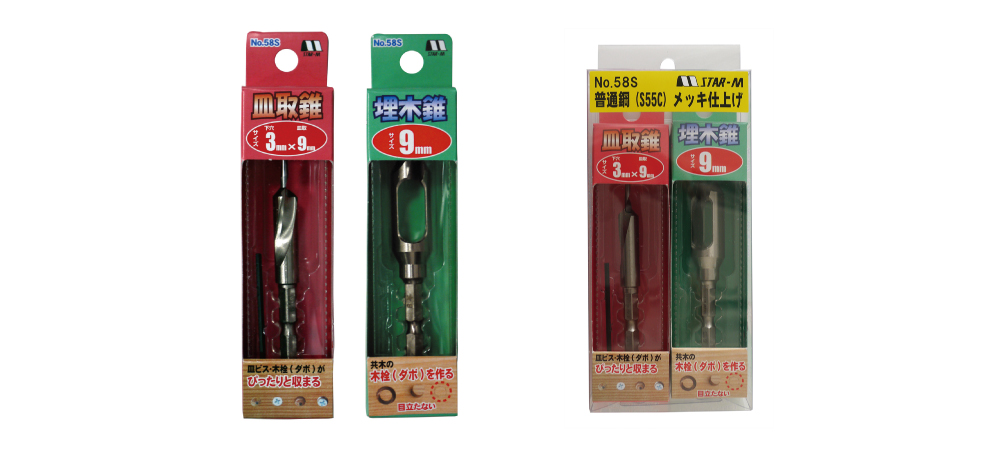

package presentation
example of use
example of use
countersink&plug cutter
package presentation
example of use
example of use

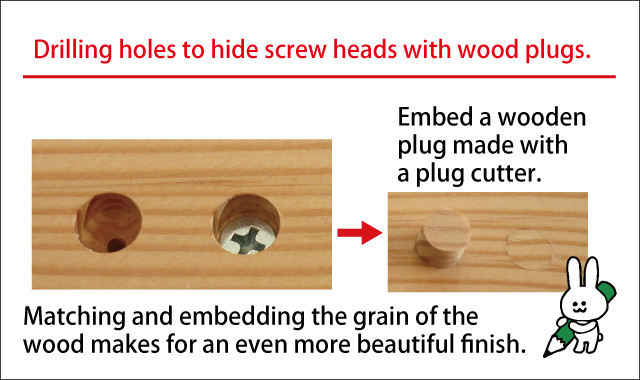

USE

Pre-drilling and countersink processing are performed with a countersink, and a wooden plug is made with a plug cutter.

FEATURES

Specifications

Usage Wood
Material(s) High Carbon Steel
Recommended tool(s) Electric Power Drill
Cordless Drill (over 14.4v)
Quick Change Impact Driver (over 14.4v)
RPm Range Less than 3,000 rpm
Shank Shape Hexagon:Hexagon Round:Round

Sizes

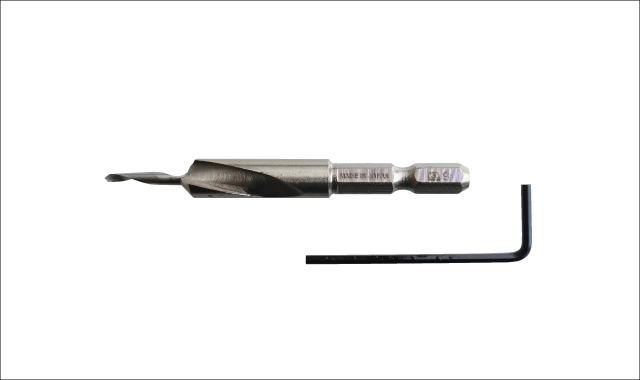

Countersink

countersink
size

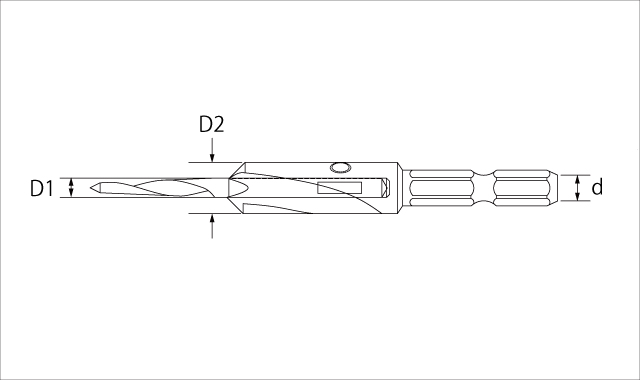

Size:D1×D2 Shank Shape:d Unit:mm

Product No. Size Shank Shape
58S-3080 3X8
6.35Hexagon
58S-3090 3X9
6.35Hexagon
58S-3510 3.5X10
6.35Hexagon
58S-4105 4X10.5
6.35Hexagon
58S-4120 4X12
6.35Hexagon

QTY(Inner Box):6pcs

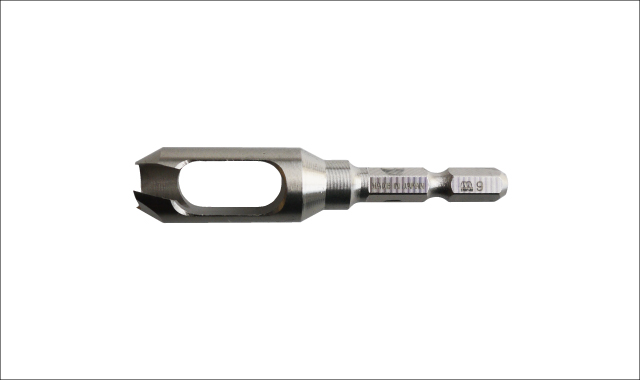

Plug Cutter

Plug cutter
size

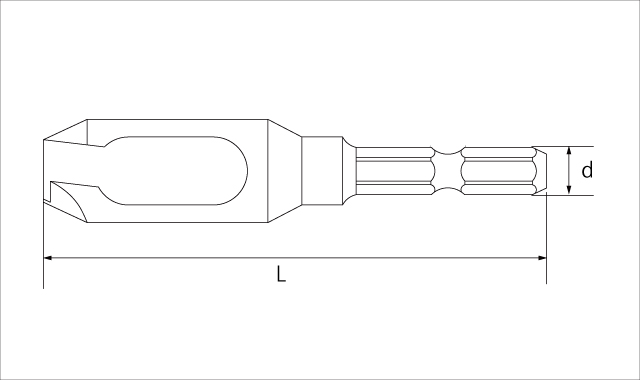

Overall Length:L Shank Shape:d Unit:mm

Product No. Size Overall Length Plug Max Length Shank Shape
58S-080 8 74 25
6.35Hexagon
58S-090 9 74 25
6.35Hexagon
58S-100 10 74 25
6.35Hexagon
58S-105 10.5 74 25
6.35Hexagon
58S-120 12 74 25
6.35Hexagon

QTY (Inner Box):6入

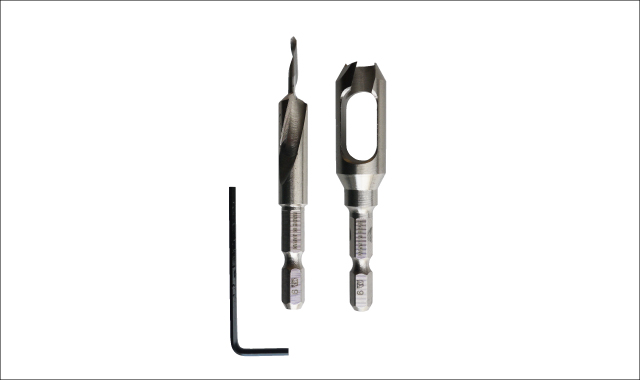

Countersink & Plug Cutter Set

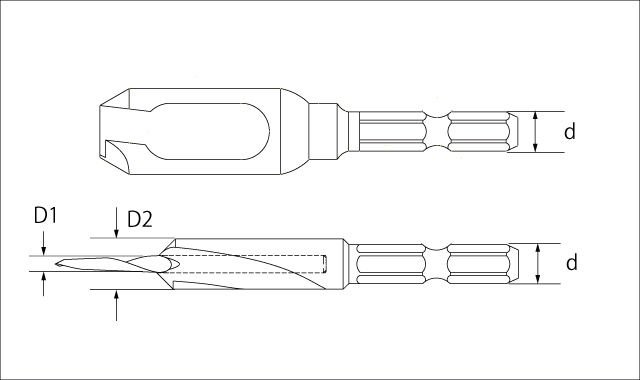

Size:Countersink(D1XD2)X Plug Cutter Shank Shape:d Unit:mm

Countersink&Plug Cutter
Size
Product No. Size Shank Shape
58S-S3080 3X8X8
6.35Hexagon
58S-S3090 3X9X9
6.35Hexagon
58S-S3510 3.5X10X10
6.35Hexagon
58S-S4105 4X10.5X10.5
6.35Hexagon
58S-S4120 4X12X12
6.35Hexagon

QTY(Inner Box):6pcs

Assembly

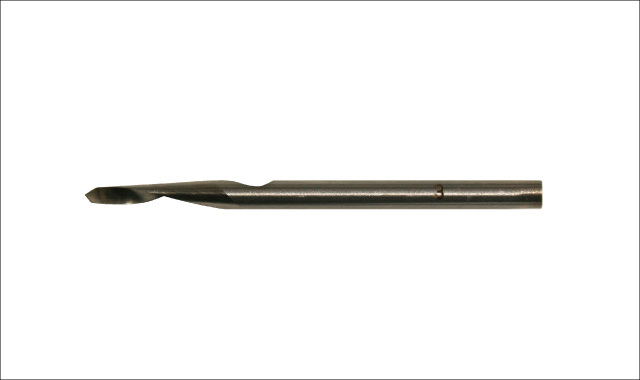

Inner Drill(Taper Point type)

Inner Drill
Inner size

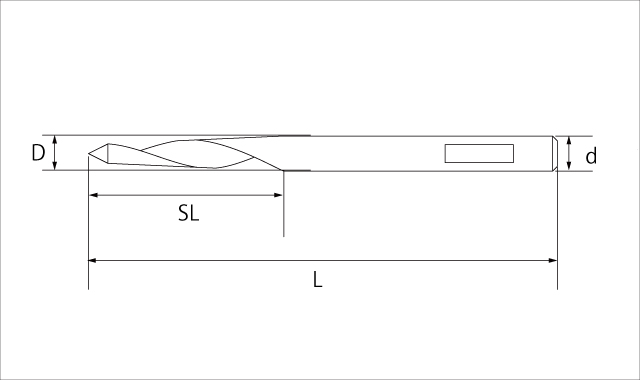

Size:D Overall Length:L Spiral Length:SL Shank Shape:d Unit:mm

Product No. Size Overall Length Spiral Length Shank Shape
58S-CD030 3 48 20
3Round
58S-CD035 3.5 48 20
3.5Round
58S-CD040 4 48 20
4Round

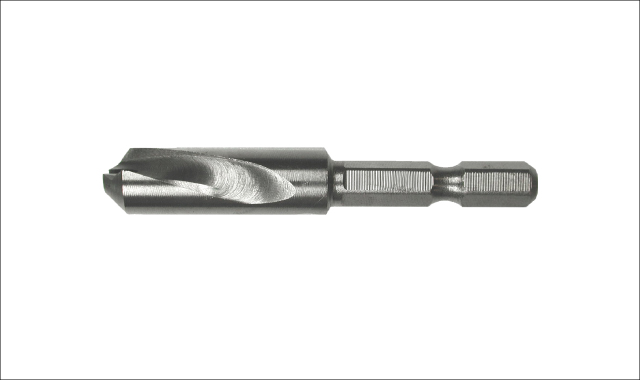

Counter Bore

Counter Bore
寸法

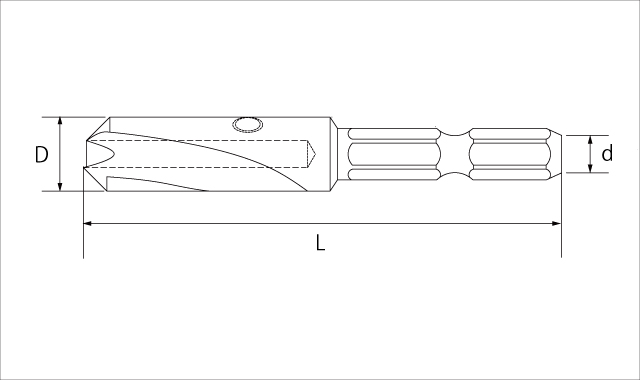

Size:D Overall Length:L Shank Shape:d Unit:mm

Product No. Size Overall Length Max Depth Shank Shape
58S-OD080 8 64 20
6.35Hexagon
58S-OD090 9 64 20
6.35Hexagon
58S-OD100 10 64 20
6.35Hexagon
58S-OD105 10.5 64 20
6.35Hexagon
58S-OD120 12 64 20
6.35Hexagon

Bits of knowledge

Q&A

The wooden plug is falling apart and I can't get it off.
If you use an impact driver, the wood stopper may be torn apart if too much impact is applied. Try moving it up and down a bit as if you were inserting and removing a plug cutter, as shown in the video. Also, if the wood is soft, such as cedar, the plug may not come off cleanly.

What is the size of the drill stopper that fits the countersink?

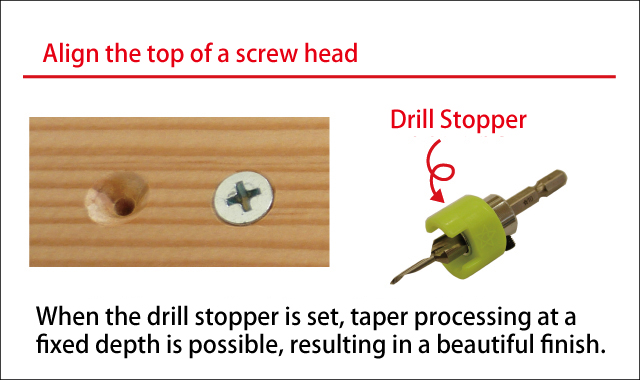

Please select the same drill stopper size as the outer drill size of the countersink, such as 9mm for the drill stopper for the 3X9. For the 3X8 model, the drill stopper cannot be set due to the slight protrusion of the immersion screw from the body.

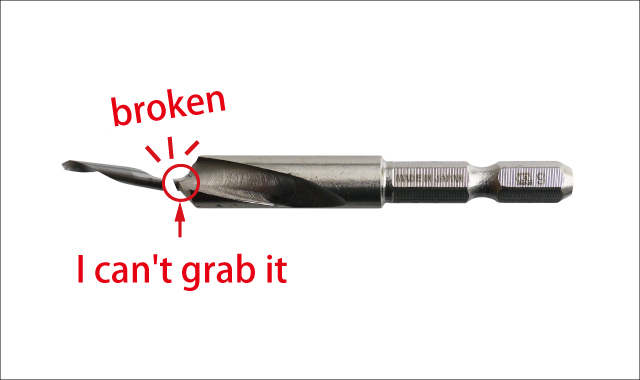

The inner drill of the countersinker has broken off, but I can't pull it out because I can't grab the tip.

Inner Drill broke

The inner drill has broken off, but the remaining part is too short to grab and pull out.

free hole

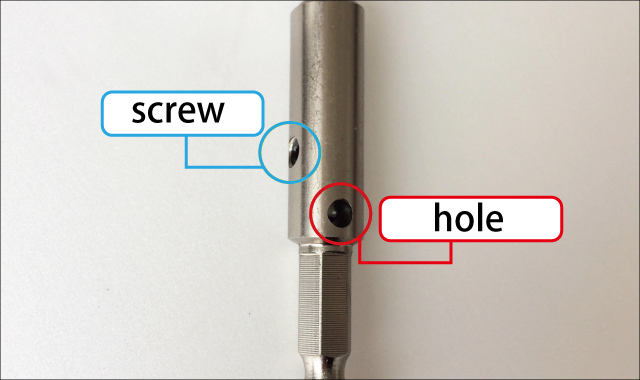

The blue circle is where the screws are fixed. The red circle is where the hole is drilled.

How to take out

release

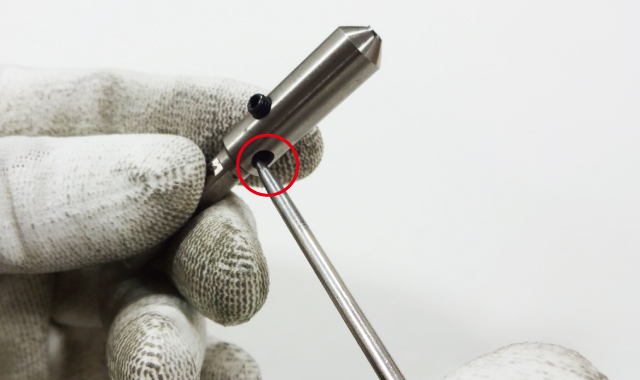

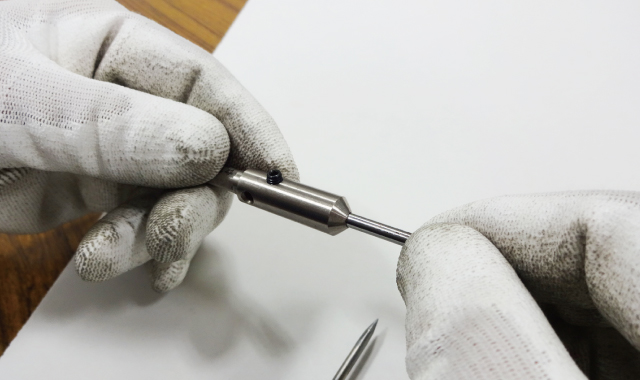

①Use the supplied hexagonal wrench to loosen the screws.

squeezes

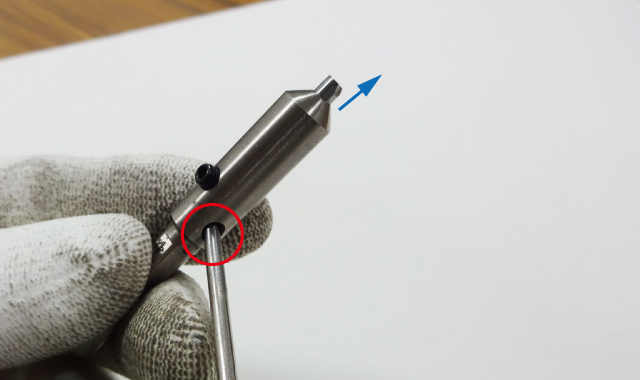

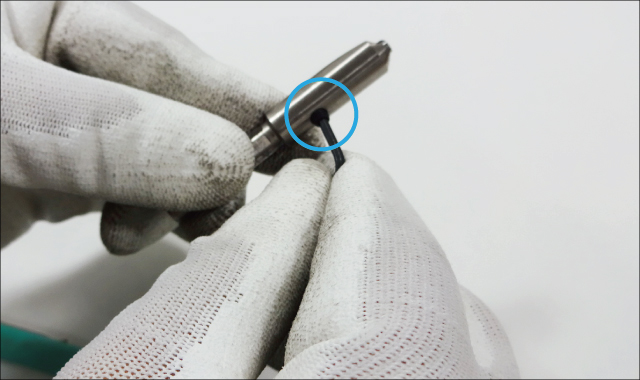

②Stick rod or pick squeezes from free hole.

cup and down

③Move the inserted object to raise the bottom of the inner drill, and the inner drill will come out.

pull out

④The inner drill will come out, so grab it and pull it out.

Help

How to use for Countersink

hole

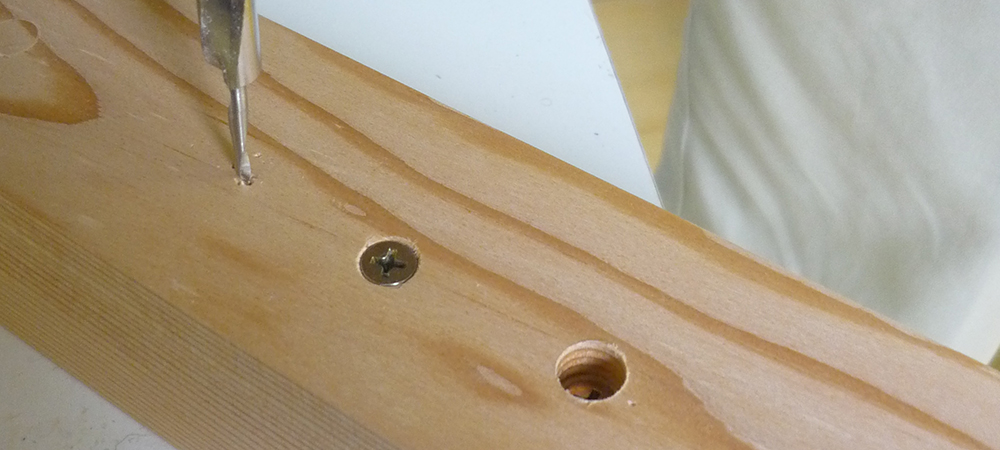

Making countersink hole. (Standard working)

deep hole

Making deep hole to plug.

How to use for Plug Cutter

making plug wood

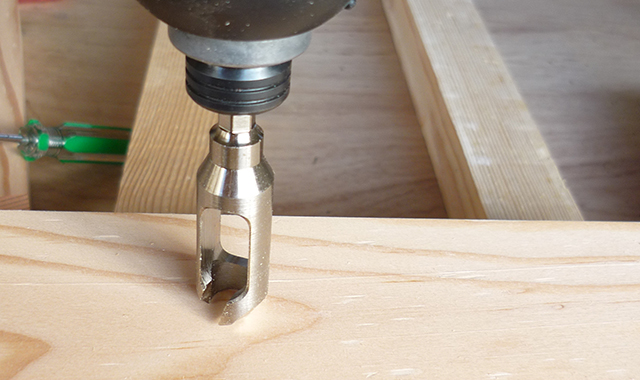

①Making Plug wood.
(applicable length = 15-20mm)

pick up the plug wood

②Pick up the plug wood depends on use rods or picks.

slight taper

③Making slight taper.

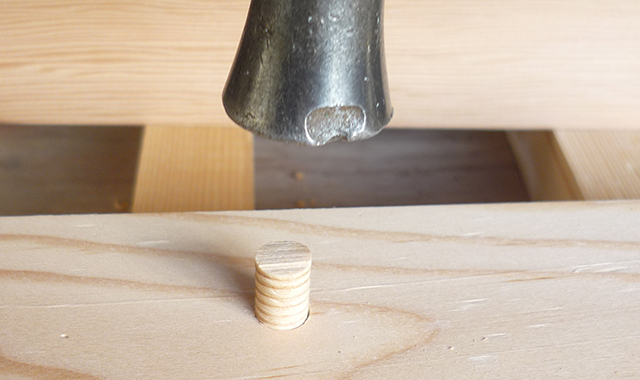

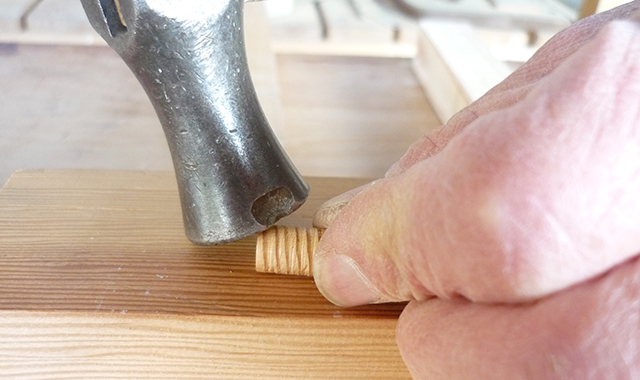

plugging by hammer

④Putting bonds in the hole and plugging by hammer.

cutting off

⑤Cutting off excess part by hand saw.

paper

⑥Putting paper file completely.

Catalog

catalog

Movie

Associated Product

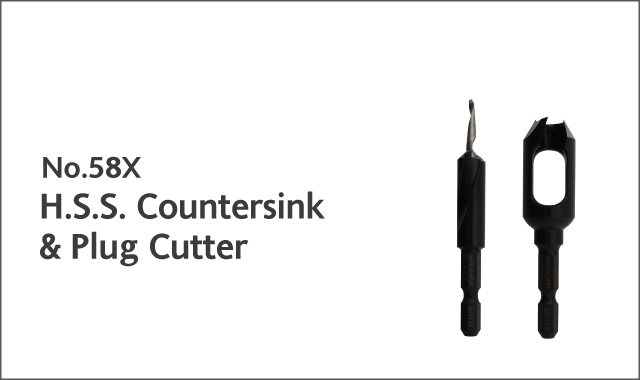

H.S.S. Hexagon Countersink & Plug Cutter
Drill Stopper
