No.13A/13B Hinge Bit

Designed for installing of slide hinge or drop hinge

Features

  • This bit has two types lead screw and brad point type. The lead screw type for quick on-target stars and smooth cutting. The brad point type for smooth on-target stars and easy to adjust the depth.
  • Upgrade type is H.S.S. type and T.C.T. type.
  • 13B(Brad point) is preferred for using by Drill Press Machine.

Specifications

Usage Wood
Recommended tool(s) Electric Power Drill
Drill Press Machine (13B)
RPm Range Less than 1,500 rpm
Material(s) High Carbon Steel
Markings markings

Sizes

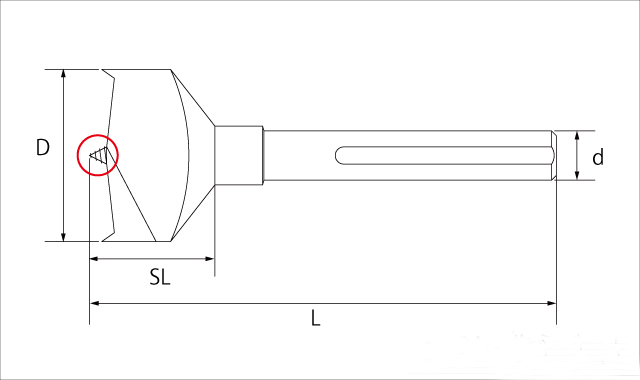

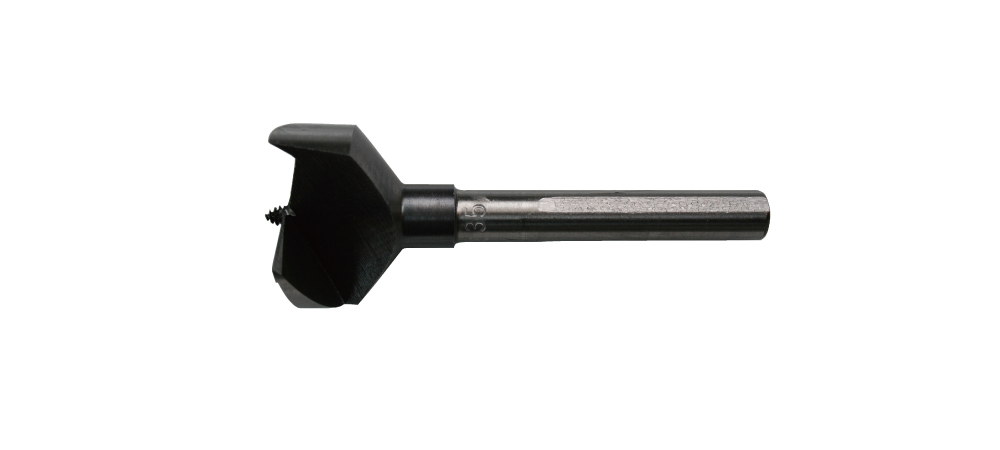

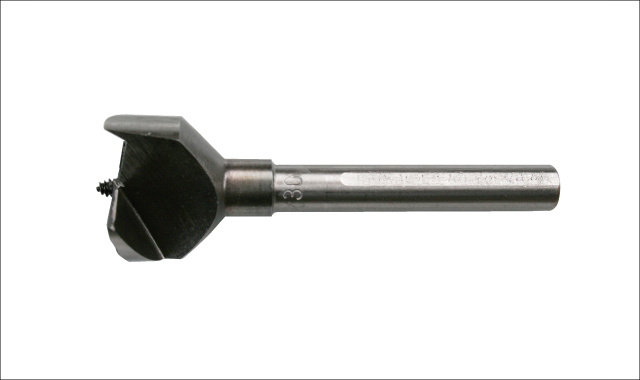

No.13A Hinge Bit (Lead Screw Type)

  • hinge bit lead screw type size

  • Size:D
  • Overall Length:L
  • Spiral Length:SL
  • Shank Shape:d
  •  Unit:mm

Product Number Size Overall Length Spiral Length Shank Shape Qty (Inner Box)
13A-250 25 95 25 10 1
13A-260 26 1
13A-300 30 1
13A-350 35 1
13A-400 40 1

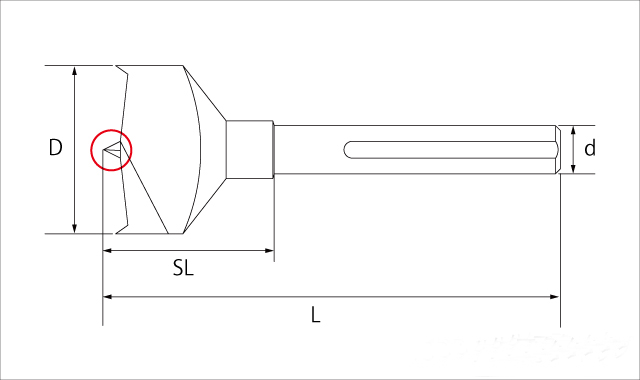

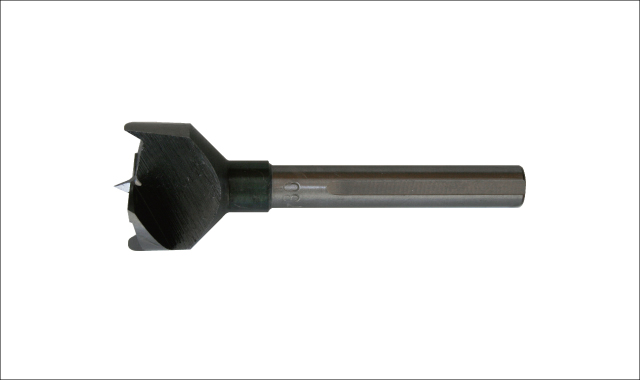

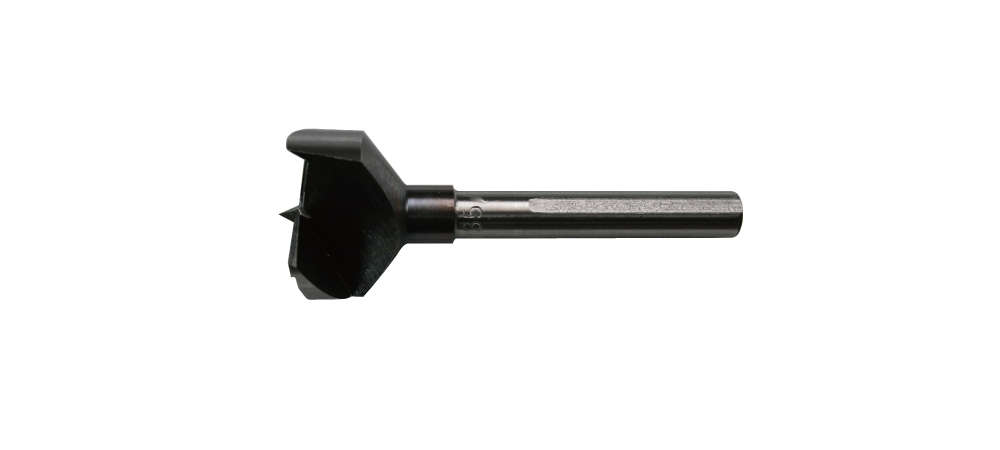

No.13B Hinge Bit (Brad Point Type)

  • hinge bit brad point type size

  • Size:D
  • Overall Length:L
  • Spiral Length:SL
  • Shank Shape:d
  •  Unit :mm

Product No. Size Overall Length Spiral Length Shank Shape Qty (Inner Box)
13B-250 25 95 25 10 1
13B-260 26 1
13B-300 30 1
13B-350 35 1
13B-400 40 1

Bits of knowledge

  • For large diameter, any length and sizes are available by order for Board Bit and T.C.T. Board Bit.

Q&A

  1. 1. What is Slide type hinge and Drop type hinge?
    Slide type hinge is often used for a slide door. Drop type hinge is often used for a downward opening door.
  2. 2. Can they be used for melamine and kitchen panels?
    No.13D T.C.T. Adjustable Hinge Bit is preferred for melamine and kitchen panels.

Help

How to use

◎Installation of slide hinge
how to use how to use

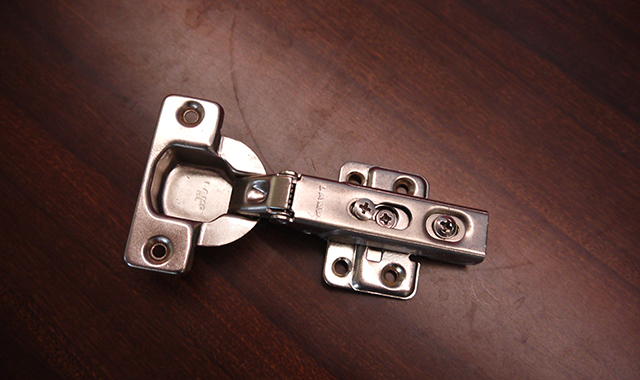

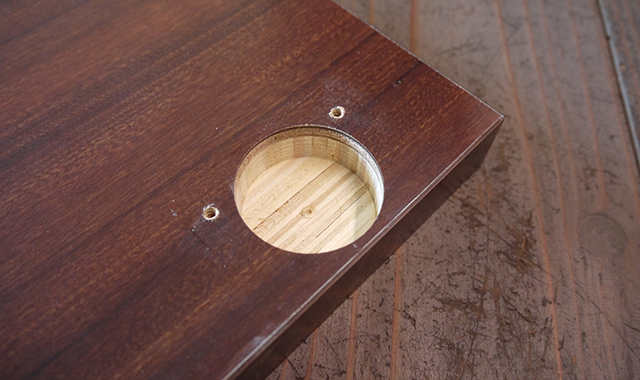

@Prepare a slide hinge. AMake a hole on the door.
how to use how to use

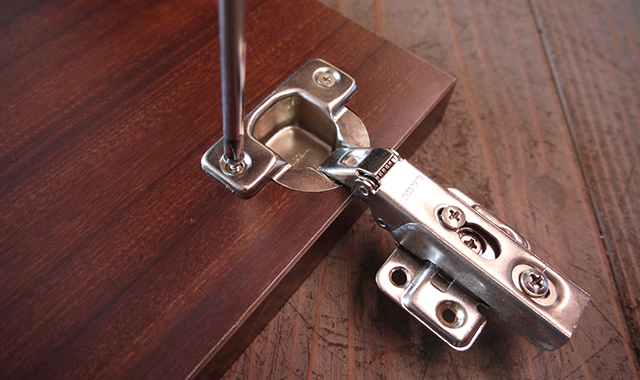

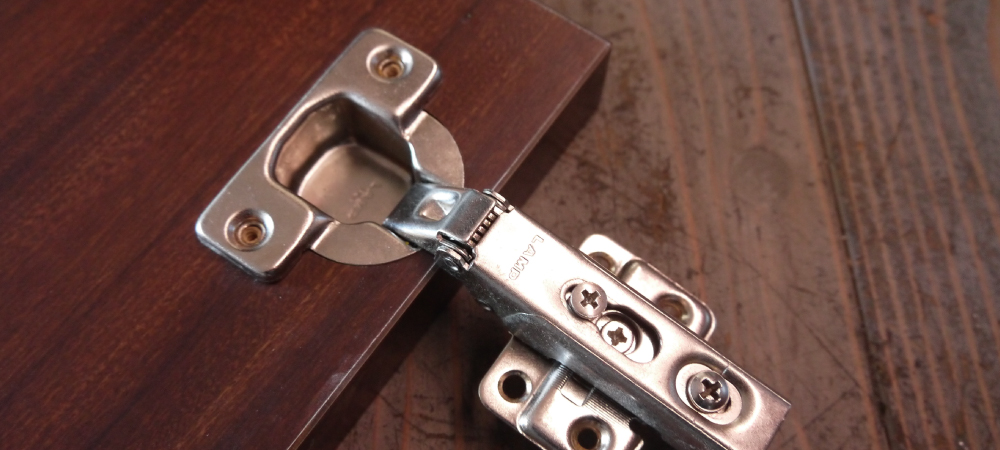

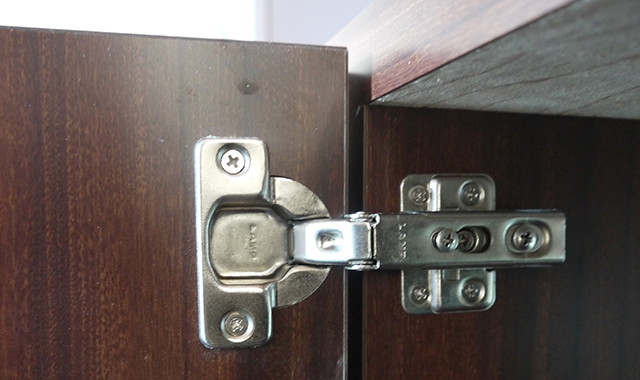

BPut the slide hinge in the hole and steady it with screws. CSteady the metal fitting with screws on the end board.
