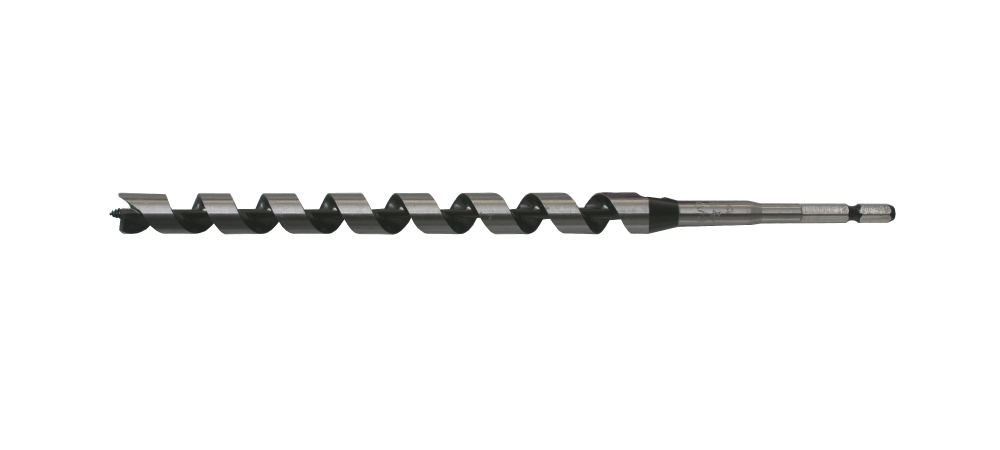

No.7L Impact Bit "Long Type"

Pass completely through to the other side

Features

  • Burr-free lead screw for quick, on-target stars & smooth cutting.
  • Energy saving 20% Up by special lead screw and cutting edge.

Specifications

Usage Wood
Recommended tool(s) Quick Change Impact Driver
Electric Power Drill
Cordless Drill
RPm Range Less than 3,000 rpm
Material(s) High Carbon Steel
Re-Sharpen Yes(How to re-sharpen)
Markings

Sizes

  • impact bit long size

  • Size:D
  • Overall Length:L
  • Spiral Length:SL
  • Shank Shape:d
  •  Unit:mm

Product No. Size Overall Length Spiral Length Shank Shape Qty (Inner Box)
7L-030 3 185 125 6.35 6
7L-040 4 190 130 6.35 6
7L-050 5 210 150 6.35 6
7L-060 6
7L-070 7 225 165 6.35 6
7L-080 8
7L-090 9 240 180 6.35  6
7L-100 10 250 190 6.35 6
7L-105 10.5
7L-110 11
7L-120 12 270 195 6.35 6
7L-130 13
7L-135 13.5 280 205 6.35 6
7L-140 14
7L-150 15
7L-160 16
7L-170 17 310 235 6.35 6
7L-180 18
7L-190 19
7L-200 20
7L-210 21

Bits of knowledge

  • When certain boring depths are needed, a Drill Stopper can be used.
  • Custom Auger bits can be made to order. (Form)

Help

Leaflet

  • leaflet

How to re-sharpen?

Sharpening the cutting edge
Sharpening the cutting edge Sharpening the cutting edge
1. Hold the bit as shown at approximately a 45-degree angle. Place the file at near-horizontal position, making sure it is flush with the cutting edge.  2. Touch the left edge of the file to the bit's spine, which will be used as a guide. File forward repeatedly only. Do not file in reverse.
Sharpening the spur
Sharpening the spur Sharpening the spur
1. If the spur has any burrs, lightly file them to create a clean edge. 2. Hold the bit so the side of the spur is facing up. Place the file flush with the spur. File with a smooth forward motion.
